Firetox Flame Retardant Cables
300/500V LSZH Insulated, Non-sheathed Power Cables to BS EN 50525-3-31 (Single Core)
FTX100 05Z1-U/R/K (CU/LSZH 300/500V Class 1/2/5)
HAR Code: H05Z1-U/R/K
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals and high-rise buildings.
STANDARDS
Basic design to BS EN 50525-3-31
FIRE PERFORMANCE
Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
VOLTAGE RATING
300/500V

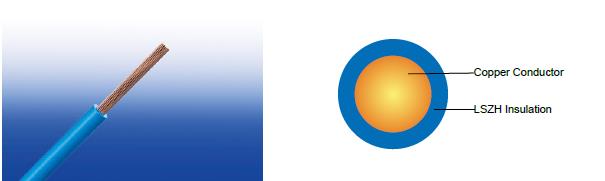

CABLE CONSTRUCTION
Conductor : Copper conductor according to BS EN 60228 class 1/2/5.
Insulation : Thermoplastic compound of type TI 7 to EN 50363-7.
Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties
can be offered as option.
COLOUR CODE
Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bi-colours of any
combination of the above mono-colours are permitted.
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds) : 160°C
Minimum bending radius : 4 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor | FTX100 05Z1-U/R/K |
||||
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
No.×mm² |
|
mm |
mm |
mm |
kg/km |
1×0.50 |
1 |
0.6 |
1.9 |
2.3 |
9.4 |
1×0.75 |
1 |
0.6 |
2.1 |
2.5 |
12.2 |
1×1.0 |
1 |
0.6 |
2.2 |
2.7 |
15.4 |
1×0.50 |
2 |
0.6 |
2.0 |
2.4 |
10.1 |
1×0.75 |
2 |
0.6 |
2.2 |
2.6 |
13.0 |
1×1.0 |
2 |
0.6 |
2.3 |
2.8 |
16.8 |
1×0.50 |
5 |
0.6 |
2.1 |
2.5 |
9.9 |
1×0.75 |
5 |
0.6 |
2.2 |
2.7 |
13.3 |
1×1.0 |
5 |
0.6 |
2.4 |
2.8 |
16.2 |
ELECTRICAL PROPERTIES
Conductor operating temperature : 70°C
Ambient temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor Cross-Sectional Area | Single-phase a.c. |
Three-phase a.c. |
mm² |
A |
A |
0.5 |
3 |
3 |
0.75 |
6 |
6 |
1.0 |
10 |
10 |
Note: These values apply to the majority of cases. Further information should be sought in unusual cases eg.: |
Voltage Drop (Per Amp Per Meter)
Conductor cross-sectional area |
2 cables d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, three-phase a.c. |
|||||
Ref. Methods A&B (enclosed in conduit or trunking) |
Ref. Methods C, F&G (clipped direct, on trays or in free air) |
Ref. Methods A&B (enclosed in conduit or trunking) |
Ref. Methods C, F&G (clipped direct, on trays or in free air) |
|||||
Cables touching |
Cables spaced* |
Cables touching, Trefoil |
Cables touching, flat |
Cables spaced*, flat |
||||
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
mm² |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
0.5 |
93 |
93 |
93 |
93 |
80 |
80 |
80 |
80 |
0.75 |
62 |
62 |
62 |
62 |
54 |
54 |
54 |
54 |
1.0 |
46 |
46 |
46 |
46 |
40 |
40 |
40 |
40 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
