SF086C-FEP

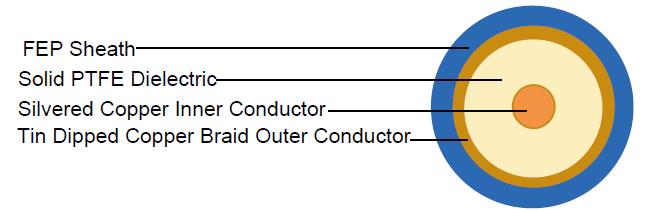

Construction
Inner conductor |
Silver plated copper |
Φ0.51 mm |
|---|---|---|
Dielectric |
Solid PTFE |
Φ1.68 ± 0.10 mm |
Outer conductor |
Tin Dipped Copper Braid |
Φ2.20 ± 0.10 mm |
Shield coverage |
|
100% |
Sheath |
FEP |
Φ2.69 mm |
Electrical & Mechanical Characteristics
Impedance |
50±2 Ohm |
|---|---|
Nominal capacitance |
95 pF/m |
Velocity of propagation |
- |
Insulation resistance |
- Mohm.Km |
Inner conductor resistance |
- Ohm/Km |
Outer conductor resistance |
- Ohm/Km |
Max.operating voltage |
1.5KV |
Operating temperature range |
-55°C - +155 °C |
Min.bending radius |
4 mm |
Attenuation
Frequency(GHz) |
Max. Attenuation(dB/100m) |
Max. Attenuation(dB/100ft) |
|---|---|---|
0.5 |
49 |
15.0 |
1 |
67 |
20.0 |
5 |
164 |
50.0 |
10 |
246 |
75.0 |
20 |
360 |
110.0 |
