Coaxial Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||

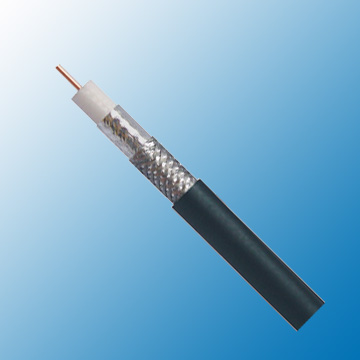

RG 6
Construction
| Inner conductor | Copper cladsteel(CCS) | Φ1.02mm |
|---|---|---|
| Dielectric | FoamPE | Φ4.57±0.20mm |
| Tape shield(shield1) | Bonded Aluminium/Polyester | |
| Shield coverage | 100% | |
| Outer conductor(shield2) | Aluminium | 96x0.12mm |
| Shield coverage | 82% | |
| Sheath | PVC or LSZH | Φ6.91mm |
Electrical & Mechanical Characteristics
Impedance :75±5Ohm
Nominal capacitance :54pF/m
Velocity of propagation :83%
Insulation resistance :>5000Mohm.Km
Inner conductor resistance :21.7Ohm/Km
Outer conductor resistance :24.1Ohm/Km
Operating temperature range :-30°C-+70°C
Cable weight(approx.) :45Kg/Km
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
|---|---|---|
| 50 | 5 | 1.5 |
| 100 | 6.7 | 2 |
| 200 | 9.5 | 2.9 |
| 400 | 14.1 | 4.2 |
| 700 | 19.9 | 6 |
| 900 | 23.2 | 7 |
| 1000 | 24.8 | 7.5 |
| 1350 | 29.9 | 9 |
| 1750 | 35.1 | 10.5 |
| 2150 | 37.9 | 11.4 |
| 2500 | 39 | 11.7 |
