EN50288-7 Cables | |||
XLPE Insulated, LSZH Sheathed Instrumentation Cables |
re-2X(st)YsWaY 90°c / 500V
APPLICATION
En 50228-7 cables used for transmission of analogue and digital signals in instrument and control systems;
allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to
low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for
direct buiral.Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Sunlight Resistance | UL 1581 section 1200 |
Oil Resistance** | ICEA S-73-532 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
500V

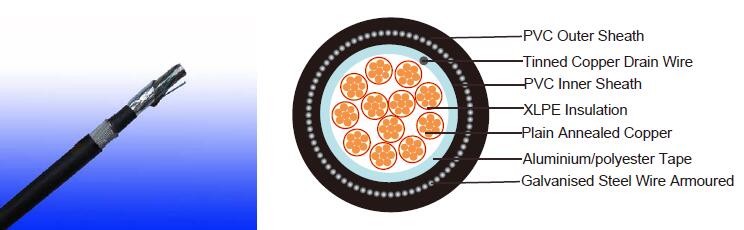

CABLE CONSTRUCTION
conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
overall screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner s heath: Thermoplastic PVC compound
a rmouring: Galvanised steel wire
outer sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil
resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound
and the overall cable design. LSPVC can also be provided upon request
COLOUR CODE
Insulation: Black numbered
outer sheath: Black, blue for intrinsically safe system
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
emperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
ELECTRICAL PROPERTIES
Conductor Area Size | mm 2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | 2.5 | |
Insulation thickness (nominal) | mm | 0.55 | 0.55 | 0.55 | 0.6 | 0.6 | 0.7 | |
Conductor resistance (20°C) | Ω/km | 36.7 | 25.0 | 18.5 | 14.2 | 12.3 | 7.4 | |
Insulation resistance (20°C) | MΩ.km(Min.) | 5000 | ||||||
Mutual Capacitance (1 kHz) | pF/m(Max.) | 115 | ||||||
Capacitance unbalance(1 kHz) | pF/500 m (Max.) | 500 | ||||||
Inductance | mH/km(Max.) | 1 | ||||||
L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | 40 | |
Operating voltage | V | 500 | ||||||
Test Voltage Urms | Core to Core | V | 2000 | |||||
Core to Screen | V | 2000 |
CONSTRUCTION PARAMETERS
Caledonian Cable Code |
RE-2X(St)YSWAY |
|||||
No. of Core x1xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
0.5mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
0.9 |
1.3 |
RE-2X(St)YSWAY 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
RE-2X(St)YSWAY 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7.0 |
0.9 |
1.3 |
RE-2X(St)YSWAY 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
0.9 |
1.3 |
RE-2X(St)YSWAY 8C0.5 |
8x1x0.5 |
0.55 |
1.0 |
9.1 |
0.9 |
1.4 |
RE-2X(St)YSWAY 10C0.5 |
10x1x0.5 |
0.55 |
1.0 |
10.4 |
0.9 |
1.4 |
RE-2X(St)YSWAY 12C0.5 |
12x1x0.5 |
0.55 |
1.0 |
10.7 |
0.9 |
1.4 |
RE-2X(St)YSWAY 14C0.5 |
14x1x0.5 |
0.55 |
1.0 |
11.3 |
0.9 |
1.4 |
RE-2X(St)YSWAY 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
0.9 |
1.4 |
RE-2X(St)YSWAY 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
0.9 |
1.5 |
RE-2X(St)YSWAY 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
0.9 |
1.5 |
RE-2X(St)YSWAY 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15.0 |
0.9 |
1.5 |
RE-2X(St)YSWAY 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
0.9 |
1.5 |
RE-2X(St)YSWAY 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2X(St)YSWAY 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
1.25 |
1.6 |
0.75mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
RE-2X(St)YSWAY 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
RE-2X(St)YSWAY 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
0.9 |
1.3 |
RE-2X(St)YSWAY 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
0.9 |
1.4 |
RE-2X(St)YSWAY 8C0.75 |
8x1x0.75 |
0.55 |
1.0 |
9.7 |
0.9 |
1.4 |
RE-2X(St)YSWAY 10C0.75 |
10x1x0.75 |
0.55 |
1.0 |
11.1 |
0.9 |
1.4 |
RE-2X(St)YSWAY 12C0.75 |
12x1x0.75 |
0.55 |
1.0 |
11.5 |
0.9 |
1.4 |
RE-2X(St)YSWAY 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
0.9 |
1.5 |
RE-2X(St)YSWAY 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
0.9 |
1.5 |
RE-2X(St)YSWAY 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
0.9 |
1.5 |
RE-2X(St)YSWAY 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16.0 |
0.9 |
1.5 |
RE-2X(St)YSWAY 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
0.9 |
1.6 |
Caledonian Cable Code |
RE-2X(St)YSWAY |
|||||
No. of Core x1xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
RE-2X(St)YSWAY 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2X(St)YSWAY 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
1.25 |
1.6 |
RE-2X(St)YSWAY 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
1.25 |
1.6 |
1.0mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
RE-2X(St)YSWAY 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
0.9 |
1.3 |
RE-2X(St)YSWAY 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
0.9 |
1.4 |
RE-2X(St)YSWAY 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
0.9 |
1.4 |
RE-2X(St)YSWAY 8C1.0 |
8x1x1.0 |
0.55 |
1.0 |
10.3 |
0.9 |
1.4 |
RE-2X(St)YSWAY 10C1.0 |
10x1x1.0 |
0.55 |
1.0 |
11.9 |
0.9 |
1.4 |
RE-2X(St)YSWAY 12C1.0 |
12x1x1.0 |
0.55 |
1.0 |
12.2 |
0.9 |
1.5 |
RE-2X(St)YSWAY 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13.0 |
0.9 |
1.5 |
RE-2X(St)YSWAY 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
0.9 |
1.5 |
RE-2X(St)YSWAY 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
0.9 |
1.5 |
RE-2X(St)YSWAY 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17.0 |
0.9 |
1.6 |
RE-2X(St)YSWAY 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
1.25 |
1.6 |
RE-2X(St)YSWAY 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18.0 |
1.25 |
1.6 |
RE-2X(St)YSWAY 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
1.25 |
1.6 |
RE-2X(St)YSWAY 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
1.25 |
1.7 |
1.3mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
0.9 |
1.3 |
RE-2X(St)YSWAY 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
0.9 |
1.3 |
RE-2X(St)YSWAY 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
0.9 |
1.4 |
RE-2X(St)YSWAY 5C1.3 |
5x1x1.3 |
0.6 |
1.0 |
9.5 |
0.9 |
1.4 |
RE-2X(St)YSWAY 8C1.3 |
8x1x1.3 |
0.6 |
1.0 |
11.2 |
0.9 |
1.4 |
RE-2X(St)YSWAY 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
0.9 |
1.5 |
RE-2X(St)YSWAY 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
0.9 |
1.5 |
RE-2X(St)YSWAY 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
0.9 |
1.5 |
RE-2X(St)YSWAY 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15.0 |
0.9 |
1.5 |
RE-2X(St)YSWAY 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2X(St)YSWAY 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
1.25 |
1.6 |
Caledonian Cable Code |
RE-2X(St)YSWAY |
|||||
No. of Core x1xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
RE-2X(St)YSWAY 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
1.25 |
1.6 |
RE-2X(St)YSWAY 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20.0 |
1.25 |
1.6 |
RE-2X(St)YSWAY 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
1.25 |
1.7 |
RE-2X(St)YSWAY 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
1.25 |
1.7 |
1.5mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
0.9 |
1.3 |
RE-2X(St)YSWAY 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
0.9 |
1.4 |
RE-2X(St)YSWAY 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
0.9 |
1.4 |
RE-2X(St)YSWAY 5C1.5 |
5x1x1.5 |
0.6 |
1.0 |
9.8 |
0.9 |
1.4 |
RE-2X(St)YSWAY 8C1.5 |
8x1x1.5 |
0.6 |
1.0 |
11.6 |
0.9 |
1.4 |
RE-2X(St)YSWAY 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
0.9 |
1.5 |
RE-2X(St)YSWAY 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
0.9 |
1.5 |
RE-2X(St)YSWAY 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
0.9 |
1.5 |
RE-2X(St)YSWAY 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
0.9 |
1.5 |
RE-2X(St)YSWAY 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
1.25 |
1.6 |
RE-2X(St)YSWAY 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
1.25 |
1.6 |
RE-2X(St)YSWAY 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
1.25 |
1.6 |
RE-2X(St)YSWAY 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
1.25 |
1.7 |
RE-2X(St)YSWAY 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
1.25 |
1.7 |
RE-2X(St)YSWAY 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
1.25 |
1.7 |
2.5mm2, Multicore |
||||||
RE-2X(St)YSWAY 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
0.9 |
1.4 |
RE-2X(St)YSWAY 3C2.5 |
3x1x2.5 |
0.7 |
1.0 |
9.7 |
0.9 |
1.4 |
RE-2X(St)YSWAY 4C2.5 |
4x1x2.5 |
0.7 |
1.0 |
10.5 |
0.9 |
1.4 |
RE-2X(St)YSWAY 5C2.5 |
5x1x2.5 |
0.7 |
1.0 |
11.9 |
0.9 |
1.4 |
RE-2X(St)YSWAY 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
0.9 |
1.5 |
RE-2X(St)YSWAY 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
0.9 |
1.6 |
RE-2X(St)YSWAY 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2X(St)YSWAY 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
1.25 |
1.6 |
RE-2X(St)YSWAY 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
1.25 |
1.6 |
RE-2X(St)YSWAY 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
1.25 |
1.7 |
Caledonian Cable Code |
RE-2X(St)YSWAY |
|||||
No. of Core x1xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
RE-2X(St)YSWAY 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
1.25 |
1.7 |
RE-2X(St)YSWAY 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
1.25 |
1.8 |
RE-2X(St)YSWAY 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1.25 |
1.8 |
RE-2X(St)YSWAY 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1.25 |
1.8 |
RE-2X(St)YSWAY 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1.25 |
1.9 |
Note : Other conductor sizes & core configurations are available upon request.
