 Solid PE Insulated & AP Sheathed (ALPETH) Air Core Cables to ICEA S-85-625

Mechanical And Tthermal Properties

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)

Color Code

Standard colour code is per ICEA S-85-625 given in Colour Code Chart

Dimensions And Weight

Solid PE Insulated and AP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625

Cable Code Number of Pairs Nominal Sheath Thickness
mm/inch
Nominal Overall Diameter
mm/inch
NominalWeight
kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y(A)2Y-3P04 3 1.5/0.059 8.0/0.315 55/37
TP625-2Y(A)2Y-5P04 5 1.5/0.059 8.5/0.335 60/40
TP625-2Y(A)2Y-6P04 6 1.5/0.059 9.0/0.354 65/44
TP625-2Y(A)2Y-10P04 10 1.5/0.059 9.5/0.374 80/54
TP625-2Y(A)2Y-12P04 12 1.5/0.059 10.0/0.394 90/60
TP625-2Y(A)2Y-15P04 15 1.5/0.059 10.5/0.413 100/67
TP625-2Y(A)2Y-20P04 20 1.5/0.059 11.0/0.433 120/81
TP625-2Y(A)2Y-25P04 25 1.5/0.059 12.0/0.472 140/94
TP625-2Y(A)2Y-30P04 30 1.5/0.059 12.5/0.492 155/104
TP625-2Y(A)2Y-40P04 40 1.5/0.059 13.5/0.531 190/128
TP625-2Y(A)2Y-50P04 50 1.5/0.059 14.5/0.571 220/148
TP625-2Y(A)2Y-75P04 75 1.5/0.059 16.5/0.650 300/202
TP625-2Y(A)2Y-100P04 100 1.5/0.059 18.0/0.709 380/255
TP625-2Y(A)2Y-150P04 150 1.5/0.059 21.0/0.827 540/363
TP625-2Y(A)2Y-200P04 200 1.5/0.059 24.0/0.945 690/464
TP625-2Y(A)2Y-300P04 300 1.5/0.059 27.5/1.083 1000/672
TP625-2Y(A)2Y-400P04 400 1.8/0.071 31.5/1.24 1300/874
TP625-2Y(A)2Y-600P04 600 2.0/0.079 37.5/1.476 1900/1277
TP625-2Y(A)2Y-800P04 800 2.3/0.091 43.0/1.693 2800/1882
TP625-2Y(A)2Y-900P04 900 2.3/0.091 46.0/1.811 2961/1990
TP625-2Y(A)2Y-1000P04 1000 2.5/0.098 48.0/1.890 3264/2193
TP625-2Y(A)2Y-1200P04 1200 2.8/0.110 52.0/2.047 3873/2603
TP625-2Y(A)2Y-1500P04 1500 2.8/0.110 58.0/2.283 4819/3238
TP625-2Y(A)2Y-1800P04 1800 3.2/0.126 63.0/2.480 5777/3882
TP625-2Y(A)2Y-2100P04 2100 3.2/0.126 68.0/2.677 6731/4523
TP625-2Y(A)2Y-2400P04 2400 3.5/0.138 72.0/2.834 7645/5137
TP625-2Y(A)2Y-2700P04 2700 3.5/0.138 76.0/2.992 8556/5749
TP625-2Y(A)2Y-3000P04 3000 3.5/0.138 80.0/3.150 9466/6361
0.5mm Conductor, 0.9mm Insulated Wire
TP625-2Y(A)2Y-3P05 3 1.5/0.059 8.5/0.335 60/40
TP625-2Y(A)2Y-5P05 5 1.5/0.059 9.5/0.374 70/47
TP625-2Y(A)2Y-6P05 6 1.5/0.059 10.0/0.394 75/50
TP625-2Y(A)2Y-10P05 10 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-12P05 12 1.5/0.059 11.5/0.453 120/81
TP625-2Y(A)2Y-15P05 15 1.5/0.059 12.0/0.472 130/87
TP625-2Y(A)2Y-20P05 20 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-25P05 25 1.5/0.059 14.0/0.551 190/128
TP625-2Y(A)2Y-30P05 30 1.5/0.059 14.5/0.571 220/148
TP625-2Y(A)2Y-40P05 40 1.5/0.059 16.0/0.630 270/181
TP625-2Y(A)2Y-50P05 50 1.5/0.059 17.0/0.669 320/215
TP625-2Y(A)2Y-70P05 70 1.5/0.059 19.0/0.748 406/273
TP625-2Y(A)2Y-75P05 75 1.5/0.059 19.5/0.768 440/296
TP625-2Y(A)2Y-100P05 100 1.5/0.059 22.5/0.886 570/383
TP625-2Y(A)2Y-150P05 150 1.5/0.059 26.0/1.024 810/544
TP625-2Y(A)2Y-200P05 200 1.8/0.071 29.5/1.157 1070/719
TP625-2Y(A)2Y-300P05 300 1.8/0.071 35.0/1.380 1530/1028
TP625-2Y(A)2Y-400P05 400 2.0/0.079 39.5/1.555 2010/1351
TP625-2Y(A)2Y-500P05 500 2.3/0.091 43.0/1.690 2577/1732
TP625-2Y(A)2Y-600P05 600 2.3/0.091 48.0/1.886 2980/2002
TP625-2Y(A)2Y-900P05 900 2.5/0.098 57.0/2.240 4415/2967
TP625-2Y(A)2Y-1000P05 1000 2.8/0.110 60.0/2.360 5015/3370
TP625-2Y(A)2Y-1200P05 1200 3.2/0.126 65.0/2.559 5959/4004
TP625-2Y(A)2Y-1500P05 1500 3.5/0.138 72.0/2.835 7414/4982
0.63mm Conductor, 1.15mm Insulated Wire
TP625-2Y(A)2Y-3P063 3 1.5/0.059 9.5/0.374 70/47
TP625-2Y(A)2Y-5P063 5 1.5/0.059 10.5/0.413 90/60
TP625-2Y(A)2Y-6P063 6 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-10P063 10 1.5/0.059 12.5/0.492 130/87
TP625-2Y(A)2Y-12P063 12 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-15P063 15 1.5/0.059 13.5/0.531 180/121
TP625-2Y(A)2Y-20P063 20 1.5/0.059 15.0/0.591 230/155
TP625-2Y(A)2Y-25P063 25 1.5/0.059 16.0/0.630 260/175
TP625-2Y(A)2Y-30P063 30 1.5/0.059 17.0/0.669 310/208
TP625-2Y(A)2Y-40P063 40 1.5/0.059 19.0/0.748 390/262
TP625-2Y(A)2Y-50P063 50 1.5/0.059 20.5/0.807 460/309
TP625-2Y(A)2Y-75P063 75 1.5/0.059 24.0/0.945 660/443
TP625-2Y(A)2Y-100P063 100 1.5/0.059 27.0/1.061 850/571
TP625-2Y(A)2Y-150P063 150 1.8/0.071 32.0/1.260 1240/833
TP625-2Y(A)2Y-200P063 200 2.0/0.079 36.5/1.437 1830/1230
TP625-2Y(A)2Y-300P063 300 2.0/0.079 43.5/1.712 2360/1586
TP625-2Y(A)2Y-400P063 400 2.3/0.091 50.0/1.968 3120/2097
TP625-2Y(A)2Y-600P063 600 2.5/0.098 59.5/2.340 4610/3098
0.9mm Conductor, 1.5mm Insulated Wire
TP625-2Y(A)2Y-3P09 3 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-5P09 5 1.5/0.059 12.5/0.492 140/94
TP625-2Y(A)2Y-6P09 6 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-10P09 10 1.5/0.059 15.0/0.591 220/148
TP625-2Y(A)2Y-12P09 12 1.5/0.059 16.0/0.630 260/175
TP625-2Y(A)2Y-15P09 15 1.5/0.059 17.5/0.689 310/208
TP625-2Y(A)2Y-20P09 20 1.5/0.059 19.0/0.748 390/262
TP625-2Y(A)2Y-25P09 25 1.5/0.059 20.5/0.807 460/309
TP625-2Y(A)2Y-30P09 30 1.5/0.059 22.5/0.885 570/383
TP625-2Y(A)2Y-40P09 40 1.5/0.059 25.5/1.000 720/484
TP625-2Y(A)2Y-50P09 50 1.5/0.059 27.5/1.080 850/571
TP625-2Y(A)2Y-75P09 75 1.8/0.071 33.0/1.300 1240/833
TP625-2Y(A)2Y-100P09 100 2.0/0.079 37.0/1.460 1620/1089
TP625-2Y(A)2Y-150P09 150 2.0/0.079 44.5/1.750 2380/1599
TP625-2Y(A)2Y-200P09 200 2.3/0.091 51.0/2.010 3130/2103
TP625-2Y(A)2Y-300P09 300 2.5/0.099 60.5/2.380 4700/3158
TP625-2Y(A)2Y-400P09 400 2.8/0.110 69.5/2.740 6210/4173

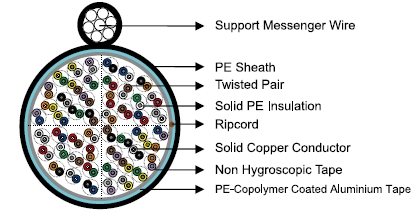

Fig 8 Solid PE Insulated & AP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625

Cable Code Number
of
Pairs
Support Messenger
Wire Diameter
mm/inch
Nominal
Sheath
Thickness
mm/inch
Nominal Overall Dimension
d x D x H
mm/inch
Nominal
Weight
kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y(A)2Y-3P04-SS 3 7/2.03 / 7/0.08 1.5/0.059 9.1X8.0X20.0 / 0.36X0.315X0.787 245/165
TP625-2Y(A)2Y-5P04-SS 5 7/2.03 / 7/0.08 1.5/0.059 9.1X8.5X20.5 / 0.36X0.335X0.807 250/168
TP625-2Y(A)2Y-6P04-SS 6 7/2.03 / 7/0.08 1.5/0.059 9.1X9.0X21.0 / 0.36X0.354X0.827 260/175
TP625-2Y(A)2Y-10P04-SS 10 7/2.03 / 7/0.08 1.5/0.059 9.1X9.5X21.5 / 0.36X0.374X0.846 270/181
TP625-2Y(A)2Y-12P04-SS 12 7/2.03 / 7/0.08 1.5/0.059 9.1X10.0X22.0 / 0.36X0.394X0.866 280/188
TP625-2Y(A)2Y-15P04-SS 15 7/2.03 / 7/0.08 1.5/0.059 9.1X10.5X22.5 / 0.36X0.413X0.886 290/195
TP625-2Y(A)2Y-20P04-SS 20 7/2.03 / 7/0.08 1.5/0.059 9.1X11.0X23.5 / 0.36X0.433X0.925 310/208
TP625-2Y(A)2Y-25P04-SS 25 7/2.03 / 7/0.08 1.5/0.059 9.1X12.0X24.0 / 0.36X0.472X0.945 330/222
TP625-2Y(A)2Y-30P04-SS 30 7/2.03 / 7/0.08 1.5/0.059 9.1X12.5X24.5 / 0.36X0.492X0.965 350/235
TP625-2Y(A)2Y-40P04-SS 40 7/2.03 / 7/0.08 1.5/0.059 9.1X13.5X25.5 / 0.36X0.531X1.000 390/262
TP625-2Y(A)2Y-50P04-SS 50 7/2.03 / 7/0.08 1.5/0.059 9.1X14.5X26.5 / 0.36X0.571X1.040 410/276
TP625-2Y(A)2Y-75P04-SS 75 7/2.03 / 7/0.08 1.5/0.059 9.1X16.5X28.5 / 0.36X0.650X1.120 490/329
TP625-2Y(A)2Y-100P04-SS 100 7/2.03 / 7/0.08 1.5/0.059 9.1X18.0X30.0 / 0.36X0.709X1.180 570/383
TP625-2Y(A)2Y-150P04-SS 150 7/2.03 / 7/0.08 1.5/0.059 9.1X21.0X33.0 / 0.36X0.827X1.300 730/491
TP625-2Y(A)2Y-200P04-SS 200 7/2.03 / 7/0.08 1.5/0.059 9.1X23.5X36.0 / 0.36X0.925X1.420 880/591
TP625-2Y(A)2Y-300P04-SS 300 7/2.03 / 7/0.08 1.5/0.059 9.1X27.5X39.5 / 0.36X1.080X1.560 1220/820
TP625-2Y(A)2Y-400P04-SS 400 7/2.03 / 7/0.08 1.5/0.059 9.7X31.5X44.0 / 0.382X1.240X1.73 1490/1001
