Constant Wattage Heating Cable up to 260 °C
Application:
Vessels, piping, valves
Food processing industry
Frost protection and temperature maintenance on pumps
Standard:
DIN VDE 0721-52
EN 62395-1; 2007-05
Voltage Rating:
230V

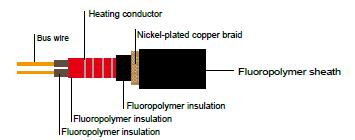

CABLE CONSTRUCTION:
Bus wire.
Insulation: Fluoropolymer.
Heating conductor.
Protective: Nickel-plated copper braid.
Outer sheath: Fluoropolymer.
Mechanical and Thermal Properties:
Nominal temperature: 260℃
Minimum installation temperature: -45℃
Minimum start-up temperature: -45℃
Bus wire cross section: 2x1.5 mm²
Minimum bending radius: 25mm
Cable Parameter:
| APPROX. Dimensions mm |
Contact spacing m | Nominal output W/m | Maximum working temperature °C |
Maximum heating circuit length m | |
|---|---|---|---|---|---|
| at 50 °C | at 150 °C | ||||
8.0x5.5 |
1.0 |
15 |
205 |
161 |
119 |
8.0x5.5 |
1.0 |
30 |
190 |
98 |
82.5 |
8.0x5.5 |
1.0 |
45 |
175 |
65.5 |
65.5 |
8.0x5.5 |
1.0 |
60 |
160 |
50 |
50 |
