CCL-BC-R(Cu Class2)

Application:

Stranded bare soft or annealed copper conductors are recommended for use as neutrals, in circuit groundconnections as well as machinery and equipment grounding systems. Soft copper may be used for transformer drop leads or other non-tension hook-up jumpers.

STANDARDS:

Basic design to IEC/BS EN 60228 class 2

FEATURES AND BENEFITES:

Stranded bare soft or annealed copper conductors are suitable for direct burial and do not suffer from the inherent corrosion problems that an aluminum conductor would. Copper is almost twice as conductive as aluminum. Copper is easier than aluminum to terminate and join at splices and joints.

CABLE CONSTRUCTION:

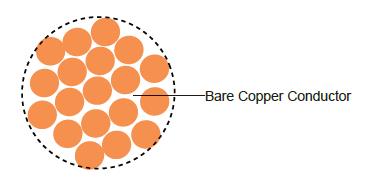

Conductor: Bare copper conductors are compressed concentric-lay-stranded consisting of one or more layers of wire wrapped helically around a straight round central wire according to IEC/BS EN 60228 class 2.

CONSTRUCTION PARAMETER:

Part No.	No. of Cores × Cross-sectional Area	No./Nominal Diameter of Strands	Conductor Nominal Diameter	Approx. Weight
	No.×mm2	mm	mm	kg/km
CCL-BC-R 16	1×16	7/1.70	5.1	7.6
CCL-BC-R 35	1×35	7/2.52	7.56	314
CCL-BC-R 50	1× 50	19/1.78	8.90	430
CCL-BC-R 70	1×70	19/2.14	10.70	625
CCL-BC-R 95	1×95	19/2.52	12.60	866
CCL-BC-R 120	1×120	37/2.03	14.25	1090
CCL-BC-R 185	1×185	37/2.52	17.64	1680
CCL-BC-R 240	1×240	61/2.25	20.30	2220
CCL-BC-R300	1×300	61/2.52	22.68	2780
