Industrial Cables
Australian Standard (Low Voltage)
Zero Halogen Flame Retardant 110℃ Double Insulated Cable, 0.6/1kV
Application:
Zero Halogen Flame Retardant 110℃ Double Insulated Cable, 0.6/1kV cables are used in power and switchboard fixed applications.
Standard:
AS 5000.1
AS1125
AS3808

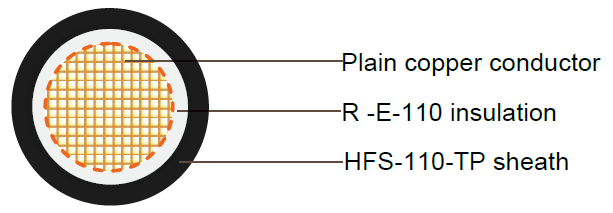

Cable Construction :
| Conductor | Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
|---|---|
| Insulation | R -E-110 to AS3808 |
| Insulation Colour: | White |
| Sheath: | HFS-110-TP to comply with AS3808 |
| Sheath Colours: | Orange , Black - other colours available by request |
Technical Characteristics:
| Conductor Size mm2 | Electrical Resistance @20.C |
Current Ratìng' AMPS 2 single cores | Voltage Drop mV 1Am at Max operating Temperature | |
|---|---|---|---|---|
| mm2 | Ohm/km | Single Phase | Three Phase | |
| 10 | 1.910 | 105 | 4.97 | 4.30 |
| 16 | 1.210 | 135 | 3.13 | 2.70 |
| 25 | 0.780 | 185 | 1.99 | 1.72 |
| 35 | 0.554 | 225 | 1.44 | 1.24 |
| 50 | 0.386 | 275 | 1.07 | 0.92 |
| 70 | 0.272 | 350 | 0.769 | 0.65 |
| 95 | 0.206 | 435 | 0.567 | 0.48 |
| 120 | 0.161 | 510 | 0.465 | 0.39 |
Cable Parameter:
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal O.D. | Approx.cable weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | kg/100m | |
| 10 | 1 | 322/0.2 | 1.0 | 1.4 | 9.1 | 16.30 |
| 16 | 1 | 511/0.2 | 1.0 | 1.4 | 10.1 | 23.40 |
| 25 | 1 | 784/0.2 | 1.2 | 1.4 | 11.8 | 33.60 |
| 35 | 1 | 1120102 | 1.2 | 1.4 | 13.1 | 44.60 |
| 50 | 1 | 1568/0.2 | 1.4 | 1.4 | 14.9 | 62.50 |
| 70 | 1 | 2240/0.2 | 1.4 | 1.4 | 17.0 | 81 .80 |
| 95 | 1 | 3040/0.2 | 1.6 | 1.5 | 19.3 | 113.00 |
| 120 | 1 | 3800/0.2 | 1.6 | 1.5 | 20.8 | 137.40 |
