Industrial Cables
Australian Standard (Low Voltage)
Single Core V90HT 0.6/1kV
Application:
Single Core V90HT 0.6/1kV cables are for electrical Interconnections.
Standard:
AS 3191
AS1125
AS3808

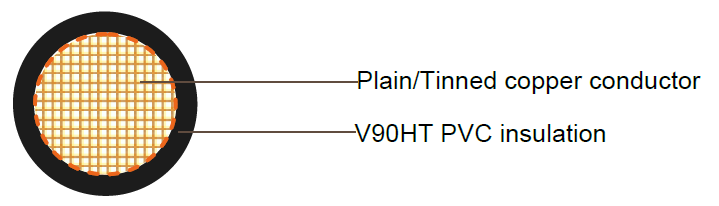

Cable Construction :
| Conductor | Tinned copper wire (TCW) or plain copper wire (PCW) to AS1125 |
|---|---|
| Insulation | V90HT PVC AS3808 |
| Colours: | Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Grey |
Technical Characteristics:
| Conductor Size mm2 | Electrical Resistance @20.C Ohm/km(TCW) |
Electrical Resistance @20.C Ohm/km(PCW) |
AMP Rating |
|---|---|---|---|
| 0.5 | 40.1 | 39 | 3 |
| 0.75 | 26.7 | 26 | 7.5 |
| 1 | 20 | 19.5 | 10 |
| 1.5 | 13.7 | 13.3 | 15 |
| 2.5 | 8.2 | 8 | 20 |
| 4 | 5.1 | 5 | 25 |
Cable Parameter:
| Coductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx.cable weight |
|---|---|---|---|---|---|
| mm2 | 1 | mm | mm | mm | kg/100m |
| 0.5 | 1 | 16/0.2 | 0.8 | 2.6 | 1.1 |
| 0.75 | 1 | 24/0.2 | 0.8 | 2.8 | 1.4 |
| 1 | 1 | 32/0.2 | 0.8 | 3 | 1.7 |
| 1.5 | 1 | 30/0.25 | 0.8 | 3.3 | 2.2 |
| 2.5 | 1 | 50/0.25 | 0.9 | 3.95 | 3.5 |
| 4 | 1 | 56/0.3 | 1 | 4.75 | 5.3 |
