Industrial Cables
Australian Standard (Low Voltage)
PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV
Application:
PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Standard:
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

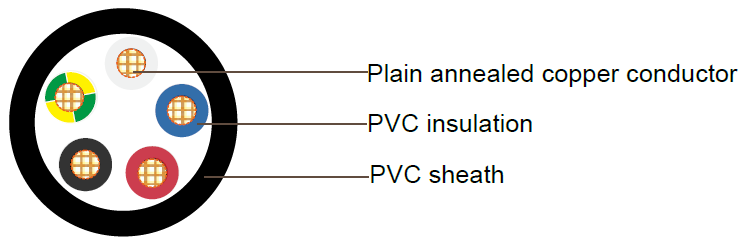

Cable Construction :
| Conductor | Plain annealed copper. |
|---|---|
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 4C + E - Red, White, Blue, black, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
Technical Characteristics:
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm2 | Unenclosed In Air A |
Buried Direct A | Buried In Ducts A |
Maximum DC Resistance @20°C Ohm/km |
Maximum AC Resistance @75°C Ohm/km |
Reactance Ohm/km | Three Phase Voltage Drop @75°C mV/Am |
| 1.5 | 15 | 13 | 19 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 22 | 18 | 26 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 29 | 24 | 34 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 37 | 31 | 43 | 3.08 | 3.75 | 0.0967 | 6.49 |
| 10 | 51 | 42 | 57 | 1.83 | 2.23 | 0.0906 | 3.86 |
| 16 | 68 | 56 | 74 | 1.15 | 1.40 | 0.0861 | 2.43 |
| 25 | 91 | 79 | 96 | 0.727 | 0.884 | 0.0853 | 1.54 |
| 35 | 110 | 92 | 115 | 0.524 | 0.638 | 0.0826 | 1.11 |
| 50 | 135 | 110 | 140 | 0.387 | 0.471 | 0.0797 | 0.829 |
| 70 | 170 | 140 | 175 | 0.268 | 0.327 | 0.0770 | 0.583 |
| 95 | 215 | 165 | 210 | 0.193 | 0.236 | 0.0766 | 0.431 |
| 120 | 245 | 195 | 240 | 0.153 | 0.188 | 0.0743 | 0.351 |
| 150 | 280 | 225 | 270 | 0.124 | 0.153 | 0.0745 | 0.296 |
| 185 | 325 | 260 | 310 | 0.0991 | 0.123 | 0.0744 | 0.251 |
| 240 | 385 | 305 | 370 | 0.0754 | 0.0955 | 0.0735 | 0.210 |
Cable Parameter:
| Nom. conductor area mm2 |
Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm2 |
Nom. earth conductor insulation thickness mm |
Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.8 | 1.5 | 0.6 | 12.4 | 225 |
| 2.5 | 7/0.67 | 0.8 | 2.5 | 0.7 | 13.7 | 280 |
| 4 | 7/0.85 | 1.0 | 2.5 | 0.7 | 15.6 | 400 |
| 6 | 7/1.04 | 1.0 | 2.5 | 0.7 | 16.8 | 510 |
| 10 | 7/1.35 | 1.0 | 4.0 | 1.0 | 20.3 | 730 |
| 16 | 7/1.70 | 1.0 | 6.0 | 1.0 | 22.9 | 1015 |
| 25 | 7/2.14 | 1.2 | 6.0 | 1.0 | 26.9 | 1540 |
| 35* | 7/2.65 | 1.2 | 10 | 1.0 | 27.7 | 1930 |
| 50* | 19/1.89 | 1.4 | 16 | 1.0 | 33.5 | 2470 |
| 70* | 19/2.24 | 1.4 | 25 | 1.2 | 37.0 | 3710 |
| 95* | 19/2.65 | 1.6 | 25 | 1.2 | 44.8 | 5025 |
| 120* | 19/2.94 | 1.6 | 35 | 1.2 | 48.5 | 5870 |
| 150* | 19/3.28 | 1.8 | 50 | 1.4 | 51.0 | 7150 |
| 185* | 37/2.65 | 2.0 | 70 | 1.4 | 56.7 | 8990 |
| 240* | 37/2.94 | 2.2 | 95 | 1.6 | 64.6 | 11910 |
