Industrial Cables
Australian Standard (Low Voltage)
Single Core Flexible Power Cable, 0.6/1kV
Application:
Single Core Flexible Power Cable, 0.6/1kV cables are mainly for use in fixed applications.
Standard:
AS/NZS 5000.1
AS1125
AS3808

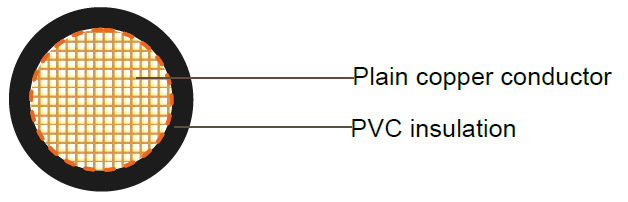

Cable Construction :
Conductor |
Nominal 0.2mm stranded flexible plain copper wire to AS1125 |
|---|---|
| Insulation | V90HT PVC to AS3808 |
| Colours | Black, Red, Blue, White, GreenlYellow |
Technical Characteristics:
| Conductor Size mm2 | Electrical Resistance @20.C | Current Ratìng' AMPS 2 single cores | Voltage Orop mV 1Am at Max operatíng Temperature | |
|---|---|---|---|---|
| mm2 | Ohm/km | Single Phase | Three Phase | |
4 |
4.950 |
40 |
11 .20 |
9.71 |
6 |
3.300 |
51 |
7.50 |
6.49 |
10 |
1.910 |
69 |
4.45 |
3.86 |
16 |
1.210 |
92 |
2.80 |
2.43 |
25 |
0.780 |
125 |
1.78 |
1.54 |
35 |
0.554 |
155 |
1.29 |
1.12 |
50 |
0.386 |
185 |
0.96 |
0.83 |
70 |
0.272 |
240 |
0.62 |
0.59 |
95 |
0.206 |
295 |
0.51 |
0.44 |
120 |
0.161 |
345 |
0.41 |
0.36 |
Cable Parameter:
Conductor Size |
No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx.cable weight |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/100m | |
4 |
1 |
128/0.2 |
1.0 |
4.8 |
5.30 |
6 |
1 |
192/0.2 |
1.0 |
5.4 |
7.30 |
10 |
1 |
322/0.2 |
1.0 |
6.3 |
11.40 |
16 |
1 |
511/0.2 |
1.0 |
7.3 |
17.10 |
25 |
1 |
784/0.2 |
1.2 |
8.8 |
30.00 |
35 |
1 |
1120/0.2 |
1.2 |
10.2 |
37.50 |
50 |
1 |
1568/0.2 |
1.4 |
11 .9 |
51.00 |
70 |
1 |
2240/0.2 |
1.4 |
14.0 |
71 .50 |
95 |
1 |
3040/0.2 |
1.6 |
16.0 |
97.00 |
120 |
1 |
3800/02 |
1.6 |
17.5 |
119.10 |
