Industrial Cables
Australian Standard (Low Voltage)
PVC Insulated, PVC Sheathed 4 core+E Round Cables, 450/750V
Application:
PVC Insulated, PVC Sheathed 4 core+E Round Cables, 450/750V cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Standard:
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

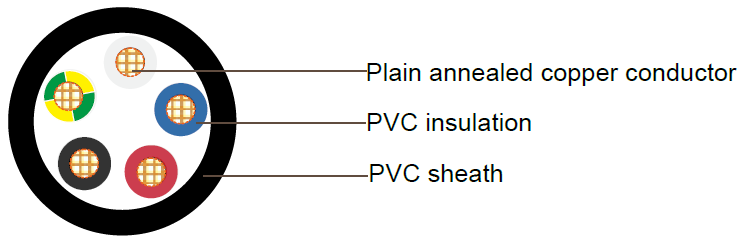

Cable Construction :
| Conductor | Plain annealed copper. |
|---|---|
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 4C + E - Red, White, Blue, black, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
Technical Characteristics:
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm2 | Unenclosed In Air A |
Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km |
Maximum AC Resistance @75°C Ohm/km |
Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 17 | 26 | 21 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 25 | 37 | 29 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 33 | 48 | 37 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 42 | 61 | 47 | 3.08 | 3.75 | 0.0967 | 6.49 |
Cable Parameter:
| Nom. conductor area mm2 |
Conductor No./ OD | Nom. insulation thickness mm |
Nom. earth conductor area mm2 |
Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.6 | 1.5 | 0.9 | 10.0 | 145 |
| 2.5 | 7/0.67 | 0.7 | 2.5 | 1 | 12.1 | 230 |
| 4 | 7/0.85 | 0.8 | 2.5 | 1.1 | 13.6 | 320 |
| 6 | 7/1.04 | 1.0 | 2.5 | 1.1 | 15.9 | 430 |
