Industrial Cables
Australian Standard (Low Voltage)
PVC Insulated, PVC Sheathed Multi-core+E Control Cables, 0.6/1kV
Application:
PVC Insulated, PVC Sheathed Multi-core+E Control Cables, 0.6/1kV cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.
Standard:
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

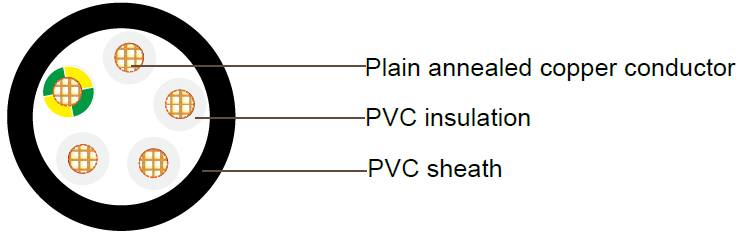

Cable Construction :
| Conductor | Plain annealed copper. |
|---|---|
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | White(black letter numbered), Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Orange, other colors are available upon request |
Technical Characteristics:
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm2 | Unenclosed In Air A |
Buried Direct A | Buried In Ducts A |
Maximum DC Resistance @20°C Ohm/km |
Maximum AC Resistance @75°C Ohm/km |
Reactance Ohm/km | Three Phase Voltage Drop @75°C mV/Am |
| 1.5mm2 | |||||||
| 2C+E | 18 | 14 | 22 | 13.6 | 16.5 | 0.111 | 33.0 |
| 3-50C+ E | 15 | 13 | 19 | 13.6 | 16.5 | 0.111 | 33.0 |
| 2.5mm2 | |||||||
| 2C+E | 26 | 20 | 31 | 7.41 | 9.01 | 0.102 | 18.0 |
| 3-50C+ E | 22 | 18 | 26 | 7.41 | 9.01 | 0.102 | 18.0 |
Cable Parameter:
| No. of Cores | Conductor No./ OD |
Nom. insulation thickness mm |
Nom. earth conductor area mm2 |
Nom. earth conductor insulation thickness mm |
Nom. overall diameter mm |
Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5mm2 | ||||||
| 2C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 10.6 | 165 |
| 3C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 11.5 | 190 |
| 4C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 12.4 | 215 |
| 6C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 13.4 | 275 |
| 8C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 16.6 | 340 |
| 10C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 16.9 | 375 |
| 12C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 17.9 | 435 |
| 15C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 18.9 | 525 |
| 20C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 20.7 | 680 |
| 25C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 22.9 | 785 |
| 30C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 25.8 | 845 |
| 40C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 28.0 | 1190 |
| 50C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 30.8 | 1290 |
| 2.5mm2 | ||||||
| 2C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 11.6 | 210 |
| 3C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 12.6 | 250 |
| 4C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 13.7 | 285 |
| 6C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 14.8 | 365 |
| 8C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 18.4 | 455 |
| 10C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 19.9 | 530 |
| 12C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 20.0 | 605 |
| 15C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 21.0 | 715 |
| 20C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 25.7 | 950 |
| 25C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 26.3 | 1095 |
| 30C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 28.3 | 1200 |
| 40C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 33.5 | 1565 |
| 50C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 35.0 | 1925 |
