FR2OHH2R
Application and Description£º
These cables are well adapted to use in industrial environments (where chemicals and oils may be present too), in signal and command equipments, in power plants and in any application where is essential guarantee power and control transmission withoutexternal interference and noise. Also suitable for valves power supply, alarm system activation, relay lock, etc.
They provide a good screening against electromagnetic (copper wires braid) and electrostatic (AL/PETP tape) interferences.
Standard and Approval£º
CEI 20-11
CEI 20-22 II
CEI 20-29
CEI 20-35 (EN60332-1)
CEI 20-37 pt.1(EN50267)

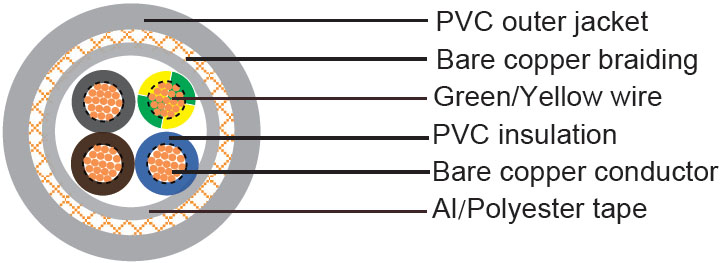

Cable Construction£º
Flexible bare copper strands
Strands to CEI 20-29 Class-5
PVC Insulation compound type R2 according to CEI 20-11
Color code according to DIN 47100 (up to 0.75 mm² ), or Unel 0722 (from 1.0 mm²)
Aluminium/Polyester tape screen
Bare copper wires braiding
PVC outer sheath compound type TM2 / Rz according to CEI 20-11
Technical Characteristics£º
| Working voltage | 300/300V (up to 0.75 mm² ) 300/300V (1.0 mm² ) 450/750V (from 1.5 mm²) |
|---|---|
| Test voltage | 1500V (up to 1.0 mm² ) / 2000V (over 1.0mm²) |
| Flexing bending radius | 12 x Ø |
| Static bending radius | 8 x Ø |
| Flexing temperature | 0ºC to +70ºC |
| Static temperature | -15ºC to +70ºC |
| Flame retardant | CEI 20-22 II |
| Insulation resistance | 10 MΩ x km |
Cable Parameter£º
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # x mm² | mm | kg/km | |
| 23(7/32) | 2x0.22 | 4.0 | 21.0 |
| 23(7/32) | 3x0.22 | 4.2 | 27.0 |
| 23(7/32) | 4x0.22 | 4.4 | 29.0 |
| 23(7/32) | 5x0.22 | 4.8 | 40.0 |
| 23(7/32) | 6x0.22 | 5.1 | 40.0 |
| 23(7/32) | 7x0.22 | 5.1 | 48.0 |
| 23(7/32) | 8x0.22 | 5.6 | 49.0 |
| 23(7/32) | 10x0.22 | 6.3 | 58.0 |
| 23(7/32) | 12x0.22 | 6.5 | 64.0 |
| 23(7/32) | 16x0.22 | 7.1 | 80.0 |
| 23(7/32) | 19x0.22 | 7.6 | 100.0 |
| 23(7/32) | 24x0.22 | 8.7 | 127.0 |
| 23(7/32) | 36x0.22 | 10.0 | 162.0 |
| 23(7/32) | 48x0.22 | 11.4 | 213.0 |
| 23(7/32) | 2x2x0.22 | 5.4 | 47.0 |
| 23(7/32) | 4x2x0.22 | 6.7 | 72.0 |
| 23(7/32) | 6x2x0.22 | 7.5 | 92.0 |
| 23(7/32) | 8x2x0.22 | 8.3 | 102.0 |
| 23(7/32) | 12x2x0.22 | 9.8 | 124.0 |
| 23(7/32) | 16x2x0.22 | 10.5 | 143.0 |
| 23(7/32) | 24x2x0.22 | 12.4 | 224.0 |
| 23(7/32) | 36x2x0.22 | 14.2 | 331.0 |
| 23(7/32) | 48x2x0.22 | 16.2 | 435.0 |
| 21(11/32) | 2x0.35 | 4.8 | 28.0 |
| 21(11/32) | 3x0.35 | 5.0 | 34.0 |
| 21(11/32) | 4x0.35 | 5.6 | 43.0 |
| 21(11/32) | 5x0.35 | 6.0 | 53.0 |
| 21(11/32) | 6x0.35 | 6.7 | 60.0 |
| 21(11/32) | 7x0.35 | 6.7 | 76.0 |
| 21(11/32) | 8x0.35 | 7.1 | 72.0 |
| 21(11/32) | 10x0.35 | 8.1 | 97.0 |
| 21(11/32) | 12x0.35 | 8.5 | 112.0 |
| 21(11/32) | 16x0.35 | 9.3 | 142.0 |
| 21(11/32) | 19x0.35 | 10.0 | 162.0 |
| 21(11/32) | 24x0.35 | 11.2 | 198.0 |
| 21(11/32) | 36x0.35 | 13.0 | 283.0 |
| 21(11/32) | 48x0.35 | 14.9 | 363.0 |
| 21(11/32) | 2x2x0.35 | 7.1 | 64.0 |
| 21(11/32) | 4x2x0.35 | 8.5 | 103.0 |
| 21(11/32) | 6x2x0.35 | 9.6 | 132.0 |
| 21(11/32) | 8x2x0.35 | 10.7 | 168.0 |
| 21(11/32) | 12x2x0.35 | 12.5 | 235.0 |
| 21(11/32) | 16x2x0.35 | 13.7 | 349.0 |
| 21(11/32) | 24x2x0.35 | 16.5 | 458.0 |
| 21(11/32) | 36x2x0.35 | 18.9 | 686.0 |
| 21(11/32) | 48x2x0.35 | 21.8 | 907.0 |
| 20(16/32) | 1x0.50 | 3.2 | 23.0 |
| 20(16/32) | 2x0.50 | 5.2 | 35.0 |
| 20(16/32) | 3x/G0.50 | 5.4 | 42.0 |
| 20(16/32) | 4x/G0.50 | 5.9 | 51.0 |
| 20(16/32) | 5x0.50 | 6.5 | 63.0 |
| 20(16/32) | 6x0.50 | 7.0 | 73.0 |
| 20(16/32) | 7x0.50 | 7.0 | 78.0 |
| 20(16/32) | 8x0.50 | 7.4 | 88.0 |
| 20(16/32) | 10x0.50 | 8.5 | 112.0 |
| 20(16/32) | 12x0.50 | 8.9 | 120.0 |
| 20(16/32) | 16x0.50 | 10.0 | 167.0 |
| 20(16/32) | 19x0.50 | 10.5 | 208.0 |
| 20(16/32) | 24x0.50 | 11.8 | 243.0 |
| 20(16/32) | 36x0.50 | 13.9 | 363.0 |
| 20(16/32) | 48x0.50 | 15.9 | 494.0 |
| 20(16/32) | 2x2x0.50 | 7.3 | 90.0 |
| 20(16/32) | 4x2x0.50 | 9.2 | 134.0 |
| 20(16/32) | 6x2x0.50 | 10.3 | 173.0 |
| 20(16/32) | 8x2x0.50 | 11.5 | 213.0 |
| 20(16/32) | 12x2x0.50 | 13.6 | 283.0 |
| 20(16/32) | 16x2x0.50 | 14.7 | 423.0 |
| 20(16/32) | 24x2x0.50 | 17.8 | 614.0 |
| 20(16/32) | 36x2x0.50 | 20.4 | 1020.0 |
| 20(16/32) | 48x2x0.50 | 23.5 | 1359.0 |
| 18(24/32) | 1x0.75 | 3.5 | 24.0 |
| 18(24/32) | 2x0.75 | 5.8 | 44.0 |
| 18(24/32) | 3x/G0.75 | 6.0 | 56.0 |
| 18(24/32) | 4x0.75 | 6.8 | 68.0 |
| 18(24/32) | 5x0.75 | 7.2 | 81.0 |
| 18(24/32) | 6x0.75 | 8.0 | 97.0 |
| 18(24/32) | 7x0.75 | 8.0 | 115.0 |
| 18(24/32) | 8x0.75 | 8.6 | 123.0 |
| 18(24/32) | 10x0.75 | 9.9 | 165.0 |
| 18(24/32) | 12x0.75 | 10.5 | 185.0 |
| 18(24/32) | 16x0.75 | 11.4 | 243.0 |
| 18(24/32) | 19x0.75 | 12 | 297.0 |
| 18(24/32) | 24x0.75 | 13.7 | 363.0 |
| 18(24/32) | 36x0.75 | 16.2 | 537.0 |
| 18(24/32) | 48x0.75 | 18.4 | 720.0 |
| 18(24/32) | 2x2x0.75 | 8.6 | 117.0 |
| 18(24/32) | 4x2x0.75 | 10.4 | 178.0 |
| 18(24/32) | 6x2x0.75 | 11.8 | 223.0 |
| 18(24/32) | 8x2x0.75 | 12.9 | 257.0 |
| 18(24/32) | 12x2x0.75 | 15.6 | 409.0 |
| 18(24/32) | 16x2x0.75 | 16.9 | 511.0 |
| 18(24/32) | 24x2x0.75 | 20.7 | 772.0 |
| 18(24/32) | 36x2x0.75 | 23.8 | 1086.0 |
| 18(24/32) | 48x2x0.75 | 27.4 | 1418.0 |
| 17(32/32) | 1x1 | 3.7 | 27.0 |
| 17(32/32) | 2x1 | 6.2 | 52.0 |
| 17(32/32) | 3x/G1 | 6.5 | 67.0 |
| 17(32/32) | 4x/G1 | 7.2 | 80.0 |
| 17(32/32) | 5x1 | 7.78 | 101.0 |
| 17(32/32) | 7x1 | 8.4 | 128.0 |
| 17(32/32) | 8x1 | 9.1 | 160.0 |
| 17(32/32) | 10x1 | 10.4 | 190.0 |
| 17(32/32) | 12x1 | 11.2 | 216.0 |
| 17(32/32) | 16x1 | 12.3 | 287.0 |
| 17(32/32) | 19x1 | 13.2 | 340.0 |
| 17(32/32) | 24x1 | 15.1 | 426.0 |
| 17(32/32) | 36x1 | 17.7 | 649.0 |
| 17(32/32) | 48x1 | 20.5 | 901.0 |
| 17(32/32) | 2x2x1 | 9.2 | 152.0 |
| 17(32/32) | 4x2x1 | 11.5 | 274.0 |
| 17(32/32) | 6x2x1 | 12.8 | 393.0 |
| 17(32/32) | 8x2x1 | 14.2 | 485.0 |
| 17(32/32) | 12x2x1 | 17.3 | 727.0 |
| 17(32/32) | 16x2x1 | 18.9 | 966.0 |
| 17(32/32) | 24x2x1 | 22.9 | 1385.0 |
| 17(32/32) | 36x2x1 | 26.3 | 2096.0 |
| 17(32/32) | 48x2x1 | 29.9 | 2766.0 |
| 12(56/28) | 2x1.5 | 7.3 | 71.0 |
| 16(30/30) | 3x/G1.5 | 7.7 | 91.0 |
| 16(30/30) | 4x/G1.5 | 8.7 | 122.0 |
| 16(30/30) | 5G1.5 | 9.3 | 140.0 |
| 16(30/30) | 7G1.5 | 10.5 | 193.0 |
| 16(30/30) | 8G1.5 | 10.9 | 255.0 |
| 16(30/30) | 10G1.5 | 12.6 | 279.0 |
| 16(30/30) | 12G1.5 | 13.3 | 330.0 |
| 16(30/30) | 16G1.5 | 14.9 | 418.0 |
| 16(30/30) | 19G1.5 | 15.9 | 552.0 |
| 16(30/30) | 24G1.5 | 18.1 | 604.0 |
| 16(30/30) | 36G1.5 | 21.4 | 950.0 |
| 16(30/30) | 48G1.5 | 24.8 | 1265.0 |
| 16(30/30) | 2x2x1.5 | 10.9 | 204.0 |
| 16(30/30) | 4x2x1.5 | 13.5 | 310.0 |
| 16(30/30) | 6x2x1.5 | 15.4 | 368.0 |
| 16(30/30) | 8x2x1.5 | 17.1 | 492.0 |
| 16(30/30) | 12x2x1.5 | 20.9 | 766.0 |
| 16(30/30) | 16x2x1.5 | 23.1 | 959.0 |
| 16(30/30) | 24x2x1.5 | 27.9 | 1416.0 |
| 16(30/30) | 36x2x1.5 | 31.7 | 2187.0 |
| 14(50/30) | 2x2.5 | 8.7 | 104.0 |
| 14(50/30) | 3x/G2.5 | 9.2 | 136.0 |
| 14(50/30) | 4x/G2.5 | 10.4 | 180.0 |
| 14(50/30) | 5G2.5 | 10.9 | 212.0 |
| 14(50/30) | 7G2.5 | 12.0 | 323.0 |
| 14(50/30) | 8G2.5 | 13.3 | 368.0 |
| 14(50/30) | 10G2.5 | 15.4 | 472.0 |
| 14(50/30) | 12G2.5 | 16.2 | 532.0 |
| 14(50/30) | 16G2.5 | 18.0 | 694.0 |
| 14(50/30) | 19G2.5 | 19.2 | 810.0 |
| 14(50/30) | 24G2.5 | 22.2 | 1019.0 |
| 14(50/30) | 36G2.5 | 26.4 | 1466.0 |
| 14(50/30) | 48G2.5 | 30.2 | 1917.0 |
| 12(56/28) | 2x4 | 10.3 | 176.0 |
| 12(56/28) | 3G4 | 11.1 | 226.0 |
| 12(56/28) | 4G4 | 12.0 | 280.0 |
| 12(56/28) | 5G4 | 13.5 | 384.0 |
| 10(84/28) | 2x6 | 11.6 | 233.0 |
| 10(84/28) | 3G6 | 12.3 | 323.0 |
| 10(84/28) | 4G6 | 13.8 | 384.0 |
| 10(84/28) | 5G6 | 15.3 | 332.0 |
| 8(80/26) | 2x10 | 15.0 | 353.0 |
| 8(80/26) | 3G10 | 15.8 | 489.0 |
| 8(80/26) | 4G10 | 17.6 | 641.0 |
| 8(80/26) | 5G10 | 19.5 | 769.0 |
G - with green/yellow ground wire X - without green/yellow ground wire
