Belden Equivalent Cables
Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 9539
Application :
Belden Equivalent 9539 multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire.Belden Equivalent 9539 cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Construction :
Conductor: Tinned copper wire.
Insulation: PVC.

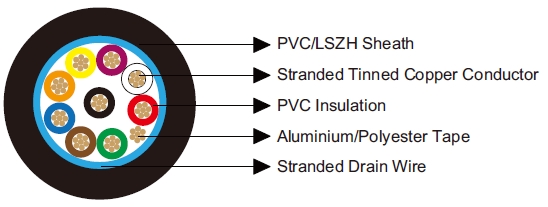

Overall Screen: Aluminium/Polyester Tape.
Drain Wire:Stranded Tinned Copper, 7x0.20.
Sheath: PVC/LSZH.
Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple.
Electrical & Mechanical Characteristics:
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.20 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 180 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions:
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE119539V | 9 | 0.25 | 0.81 | 6.2 |
| BE119539H | 9 | 0.25 | 0.81 | 6.2 |
