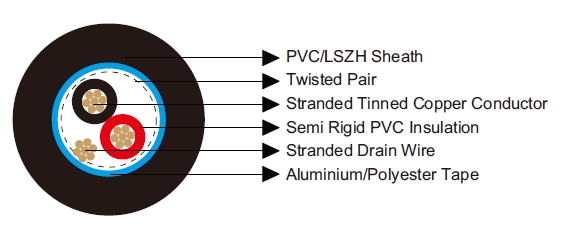

Multipair Overall Screened Cables-Belden Equivalent 9501
Application :
Belden Equivalent 9501 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire.Belden Equivalent 9501 cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Construction :
Conductor: Tinned copper wire.
Insulation: Semi Rigid PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black/Red.
Electrical & Mechanical Characteristics:
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 131 |
| Nominal Capacitance Conductor to Screen | pF/m | 243 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions:
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE119501V | 1 | 0.25 | 0.81 | 4.0 |
| BE119501H | 1 | 0.25 | 0.81 | 4.0 |
