Submersible Cable for drinking water
Submersible Cable for drinking water (flat type)
Applications:
These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water
Standards:
DIN VDE 0282, part 16
DIN VDE 0295
IEC 60228
DIN VDE 0298
DIN VDE 0472

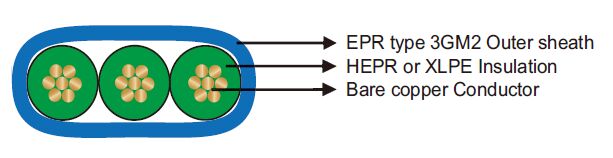

Construction:
Conductor: Bare copper stranded class 5 to VDE0295, IEC 60228
Insulation: HEPR or XLPE
Outer Sheath: EPR type 3GM2, coloured blue.
Technical data:
Test Voltage 50Hz, 5 min: 2500V
Rated Voltage: 450/750V
Maximum admissible conductor Temperature in Operation: 90ˇăC
Short Circuit Temperature: 250ˇăC
Temperature Range: -40ˇăC~+60ˇăC
Dimensions :
| No. of cores x cross | Outer Diameterˇˇ approx mm x mm |
Net weight kg/km |
|---|---|---|
3x1.5 |
12.4x5.7 |
100 |
3x2.5 |
14.2x6.7 |
170 |
3x4 |
16.6x7.9 |
240 |
3x6 |
18.4x8.5 |
300 |
3x10 |
21.4x9.5 |
450 |
3x16 |
25.9x11.5 |
680 |
3x25 |
30.7x13.1 |
950 |
3x35 |
35.2x15.0 |
1300 |
3x50 |
40.9x17.3 |
1800 |
3x70 |
47.9x19.8 |
2450 |
3x95 |
53.6x22.6 |
3150 |
4G1.5 |
15.4x5.9 |
140 |
4x2.5 |
17.6x6.7 |
200 |
4G4 |
20.6x7.9 |
290 |
4G6 |
23.3x8.5 |
380 |
4G10 |
27.3x9.5 |
580 |
4G16 |
32.7x11.5 |
880 |
4G25 |
39.1x13.1 |
1260 |
4G35 |
45.6x15.0 |
1700 |
4G50 |
52.0x17.3 |
2360 |
4G70 |
61.2x19.8 |
3250 |
4G95 |
69.6x22.6 |
4150 |
