Shielded Sensor Cable
APPLICATION:
Smaller cables providing easier handling and space savings.
Compatible with wire-handling equipment used in harness shops.
Compatible with over-molding processes and materials used in sensor assembly.
STANDARD:
Basic design to EN50264
FIRE PERFORMANCE:
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
|---|---|
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |

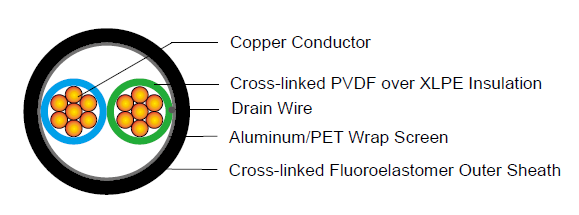

CONSTRUCTION :
Conductor:Tinned Copper /Bare Copper.
Insulation: Cross-linked PVDF over XLPE.
Screen: Aluminum/PET Wrap+ Drain Wire.
Sheath: Cross-linked Fluoroelastomer or Cross-linked Modified Polyolefin.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
COLOUR CODE:
Insulation Colour: Blue,Brown,Black,White,Green(Other colours can be offered upon request).
Sheath Colour: Black (Other colours can be offered upon request).
PHYSICAL AND THERMAL PROPERTIES:
Operating temperature :-55°C—200°C.
Short-term operating temperature:
240 hours @ 175°C (Cross-linked modified polyolefin sheath);
160 hours @ 250°C(Cross-linked modified polyolefin sheath);
6 hours @ 300°C(Cross-linked fluoroelastomer sheath);
Cold bend :–40°C(Cross-linked modified polyolefin sheath);
–25°C(Cross-linked fluoroelastomer sheath).
Flammability :70s(Cross-linked modified polyolefin sheath);
30s(Cross-linked fluoroelastomer sheath).
Abrasion: (ISO 6722) > 500 cycles(Cross-linked modified polyolefin sheath);
> 1000 cycles(Cross-linked fluoroelastomer sheath).
Fluid resistance: As per ISO6722:2011 (E) Media groups 1 & 2.
Bending radius: 10xOD during installation;
5xOD fixed installed.
CONSTRUCTION PARAMETERS:
| CONDUCTOR | SENSOR CABLE | |||
|---|---|---|---|---|
| No.of Cores× Cross Section |
Class of Conductor |
Min. Overall Diameter |
Max. Overall Diameter |
Weight |
| mm² | mm | mm | kg/km | |
| 2×0.35 | 2 | 3.2 | 3.6 | 20.0 |
| 3×0.35 | 2 | 3.4 | 3.8 | 24.8 |
| 2×0.50 | 2 | 3.4 | 3.8 | 24.8 |
| 3×0.50 | 2 | 3.6 | 4.0 | 31.0 |
| 2×0.75 | 2 | 3.8 | 4.2 | 33.0 |
| 3×0.75 | 2 | 4.1 | 4.5 | 41.7 |
| 2×1.0 | 2 | 4.1 | 4.5 | 40.7 |
| 3×1.0 | 2 | 4.4 | 4.8 | 51.8 |
