FRA 155S Oil Resistant Single Core
Applications :
FRA 155S Oil Resistant Single Core cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc.
Standards :
EN45545-2
IEC 60332-1,
EN 50265-2-1 (flame retardant)
EN 50266-2 (non-flame propagating)
Construction :

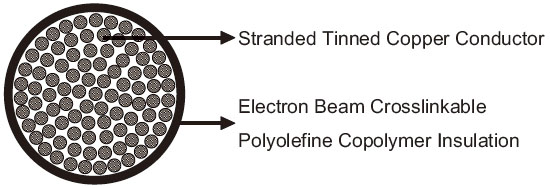

Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation : Electron beam crosslinkable polyolefine copolymer.
Colour Code : Various colours on request.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.50 0.75 1.0 1.5 2.5 4.0 6.0 Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²)
Mechanical and Thermal Properties :
Minimum Bending Radius : 4xOD (Static);
6xOD (Flexing).
Temperature Range : -55℃ ~+155℃ (Static);
-40℃ ~+120℃ (Flexing).
Short Circuit Temperature : +280℃.
Dimensions and Weight :
| No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Number and Nominal Diameter of Strands No./mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|
| 1×0.50 | 16/0.20 | 0.4 | 1.7 | 7 |
| 1×0.75 | 24/0.20 | 0.5 | 2.2 | 11 |
| 1×1.0 | 30/0.20 | 0.6 | 2.5 | 15 |
| 1×1.5 | 30/0.25 | 0.6 | 2.7 | 19 |
| 1×2.5 | 50/0.25 | 0.7 | 3.5 | 30 |
| 1×4.0 | 56/0.30 | 0.8 | 4.2 | 45 |
| 1×6.0 | 84/0.30 | 0.9 | 5.2 | 66 |
| NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
IEC 60754-1/NF C20-454 EN 50267-2-1 |
IEC 61034/NFC20-902 EN 50268/NF C32-073 |
EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
