P119 RX / TX 0.6/1 kV
Applications :
P119 RX / TX 0.6/1 kV are flame retardant, low smoke and halogen free, used for earthing and bonding services.
Standards :
IEC 60092-354
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

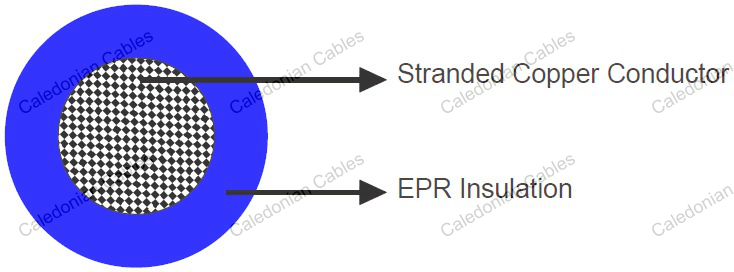

Construction:
Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Insulation : Halogen-free EPR or XLPE. Blue,brown, black or grey. Blue, brown, black or grey.
Electrical Characteristics:
| Nominal Cross Section Area | mm² | 10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Conductor Diameter | mm | 4.0 |
5.1 |
6.5 |
7.4 |
8.7 |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
| Maximum DC Resistant@20℃ | Ω/km | 1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
| Continuous Current Rating@45℃ 1 Core | A | 72 |
96 |
127 |
157 |
196 |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
| Short Circuit Current 1s | A | 1430 |
2290 |
3580 |
5010 |
7150 |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
| Operating Voltage | KV | 0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Mechanical and Thermal Properties:
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight:
Construction No. of cores × Cross section |
Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| mm² | mm | mm | kg/km |
1×1.5 |
1.0 |
3.6 |
267 |
1×2.5 |
1.0 |
4.1 |
317 |
1×4 |
1.0 |
4.6 |
385 |
1×6 |
1.0 |
5.2 |
460 |
1×10 |
1.0 |
6.0 |
591 |
1×16 |
1.0 |
7.1 |
752 |
1×25 |
1.2 |
8.9 |
1140 |
1×35 |
1.2 |
9.8 |
1371 |
1×50 |
1.4 |
11.5 |
1874 |
1×70 |
1.4 |
13.1 |
2330 |
1×95 |
1.6 |
15.8 |
3156 |
1×120 |
1.6 |
17.4 |
3656 |
1×150 |
1.8 |
19.4 |
4541 |
1×185 |
2.0 |
21.6 |
5663 |
1×240 |
2.2 |
24.7 |
7226 |
1×300 |
2.4 |
27.5 |
8892 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
