S111 RX / TX 250V
Applications:
S111 RX / TX 250V cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100℃ hydrocarbon fire.
Standards:
IEC 60092-354
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

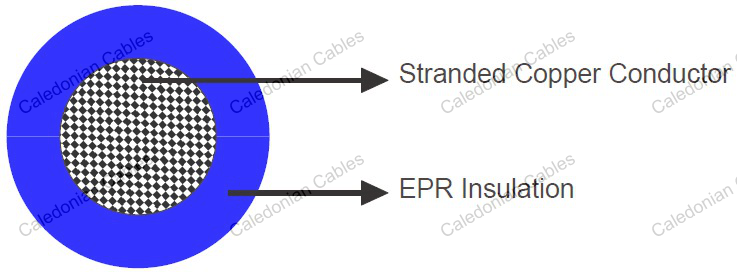

Construction:
Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Insulation : Halogen-free EPR or XLPE. Blue,brown, black or grey. Blue, brown, black or grey.
Electrical Characteristics:
Nominal Cross Section Area |
mm² | 0.75 |
1.0 |
1.5 |
2.5 |
|---|---|---|---|---|---|
| Nominal Conductor Diameter | mm | 1.1 |
1.3 |
1.6 |
2.0 |
| Maximum Resistant@20℃ | Ω/km | 26.3 |
19.3 |
12.9 |
8.02 |
| Mutual Capacitance | nF/km | 85 |
95 |
100 |
110 |
| Nominal Inductance@1KHz | MH/km | 0.731 |
0.691 |
0.673 |
0.629 |
| Maximum L/R@1KHz | μH/Ω | 20 |
25 |
35 |
55 |
| Operating Voltage | V | 250 |
250 |
250 |
250 |
Mechanical and Thermal Properties:
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight:
| Construction No. of cores × Cross section | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| mm² | mm | mm | kg/km |
1×0.75 |
0.6 |
2.31 |
107 |
1×1.0 |
0.6 |
2.49 |
120 |
1×1.5 |
0.7 |
2.99 |
171 |
1×2.5 |
0.7 |
3.41 |
209 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
