Marine Cable
Fire Resistant Power and Control Cables
P125 SFOU 0.6/1 kV
Applications :
P125 SFOU 0.6/1 kV cables are fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.
Standards :
IEC 60092-353
IEC 60092-360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016
-
Standards:
IEC 60092-353
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-2
NEK 606:2016

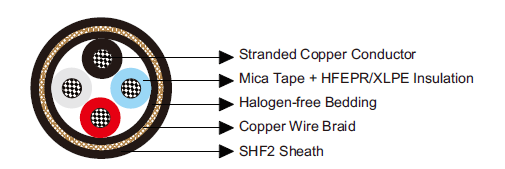

Construction:
Conductors: Tinned stranded copper to IEC 60228 class 2 or class 5.
Insulation: Fire resistant silicon compound.
Bedding: Extruded halogen-free compound.
Amour: Tinned copper wire braid.
Outer Sheath: Halogen free thermosetting compound, SHF2, coloured black.
Electrical Characteristics:
Nominal Cross Section Areamm² 1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
Nominal Conductor Diameter mm 1.6
2.1
2.6
3.2
4.0
5.1
6.5
7.4
8.7
10.3
12.2
13.8
15.1
17.0
19.6
21.9
Maximum DC Resistant@20℃ Ω/km 12.2
7.56
4.7
3.11
1.84
1.16
0.734
0.529
0.391
0.27
0.195
0.154
0.126
0.1
0.0762
0.0607
Continuous Current Rating@45℃ 1 Core A 23
30
40
52
72
96
127
157
196
242
293
339
389
444
522
601
Continuous Current Rating@45℃ 2 Core A 20
26
34
44
61
82
108
133
167
206
249
288
331
444
444
511
Continuous Current Rating@45℃ 3&4 Core A 16
21
28
36
50
67
89
110
137
169
205
237
272
311
365
421
Short Circuit Current 1s A 210
360
570
860
1430
2290
3580
5010
7150
10020
13590
17170
21460
26470
34340
42930
Operating Voltage KV 0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
0.6/1
Mechanical and Thermal Properties:
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight:
Construction No. of cores × Cross sectionNominal Insulation Thickness Diameter under Armour Nominal Overall Diameter Nominal Weight mm² mm mm mm kg/km 1×16
1.0
10.9
15.0
470
1×25
1.2
12.6
17.
620
1×35
1.2
13.6
18.0
754
1×50
1.4
14.7
20.0
900
1×70
1.4
16.4
21.0
1140
1×95
1.6
18.6
24.0
1500
1×120
1.6
20.4
26.0
1800
1×150
1.8
22.2
28.0
2150
1×185
2.0
24.5
30.0
2630
1×240
2.2
27.8
34.0
3320
1×300
2.4
31.0
38.0
4030
2×1.5
1.0
10.5
15.0
330
2×2.5
1.0
11.7
16.0
390
2×4
1.0
13.6
18.0
490
2×6
1.0
14.9
20.0
605
2×10
1.0
16.5
21.0
800
2×16
1.0
18.9
24.0
1060
3×1.5
1.0
11.2
15.0
370
3×2.5
1.0
12.4
17.0
450
3×4
1.0
14.5
19.0
570
3×6
1.0
15.8
21.0
700
3×10
1.0
17.5
23.0
980
3×16
1.0
20.5
26.0
1350
3×25
1.2
24.4
30.0
1860
3×35
1.2
26.4
32.0
2140
3×50
1.4
29.0
35.0
2670
3×70
1.4
32.7
40.0
3540
3×95
1.6
37.4
45.0
4710
3×120
1.6
40.8
49.0
5640
3×150
1.8
45.1
54.0
6930
3×185
2.0
50.1
59.0
8550
3×240
2.2
56.8
66.0
10830
3×300
2.4
63.7
74.0
12980
4×1.5
1.0
12.1
17.0
430
4×2.5
1.0
13.5
18.0
510
4×4
1.0
15.8
21.0
670
4×6
1.0
17.3
22.0
840
4×10
1.0
19.6
25.0
1150
4×16
1.0
22.5
28.0
1560
4×25
1.2
26.8
33.0
2150
4×35
1.2
29.1
35.0
2930
4×50
1.4
31.9
39.0
3440
4×70
1.4
36.0
43.0
4460
4×95
1.6
41.3
49.0
5960
4×120
1.6
45.1
53.0
7180
4×150
1.8
49.8
59.0
8770
4×185
2.0
55.8
65.0
10850
4×240
2.2
62.7
73.0
13880
4×300
2.4
70.5
81.0
16650
5×1.5
1.0
13.4
18.0
500
7×1.5
1.0
14.6
19.0
590
12×1.5
1.0
19.4
25.0
960
19×1.5
1.0
22.7
28.0
1245
27×1.5
1.0
27.3
33.0
1710
37×1.5
1.0
30.8
37.0
2240
5×2.5
1.0
14.8
19.0
600
7×2.5
1.0
16.1
21.0
720
12×2.5
1.0
21.5
27.0
1150
19×2.5
1.0
25.4
31.0
1570
27×2.5
1.0
30.6
37.0
2270
30×2.5
1.0
34.4
41.0
2850
37×2.5
1.0
34.4
41.0
2850
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
