Firetox Flame Retardant Cables
LSZH Flame Retardant CAT6A GSWB Armoured Data Cables
FTX-CAT6AS/FTP4P23LH GSWB
APPLICATION:
LSZH Flame Retardant CAT6A GSWB Armoured Data Cables is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The galvanized steel wire braid armor provides excellent protection.The LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS:
ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568
FIRE PERFORMANCE:
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
|---|---|
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
| CPR Compliance | B2ca,Cca |

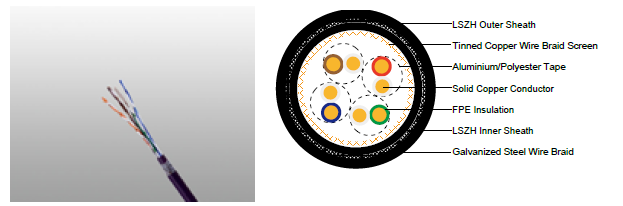

CABLE CONSTRUCTION:
Conductors: 23AWG solid bare copper.
Insulation: FPE .
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Thermoplastic LSZH compound, coloured black.
Armouring: Galvanized steel wire braid with 85% coverage.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
PHYSICAL AND THERMAL PROPERTIES:
Temperature range: -20°C - +70°C
Minimum bending radius during installation (mobile state): 15 x Overall Diameter
Minimum bending radius during operation (fixed state): 8 x Overall Diameter
ELECTRICAL PROPERTIES:
| AWG | 23 |
|
|---|---|---|
| Nominal Conductor Diameter | mm | 0.56/0.57/0.58 |
| Maximum DC Resistance@20°C | Ω/100m | 7.5 |
| Maximum DCR Unbalance | % | 3 |
| Maximum Mutual Capacitance | pF/m | 5.8 |
| Maximum Capacitance Unbalance | pF/100m | 30 |
| Characteristic Impedance@1-100MHz | Ω | 100±20 |
| Maximum Propagation Delay Skew | ns/100m | 18 |
TRANSMISSION PROPERTIES:
| FREQ MHz |
Attenuation dB/100m | NEXT dB |
PSNEXT dB |
ELFEXT dB/100m |
PSELFEXT dB/100m |
RL dB |
|---|---|---|---|---|---|---|
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS:
| Cable Code | Conductor Diameter | Aprrox. Overall Diameter | Nominal Weight |
|---|---|---|---|
| mm | mm | kg/km | |
FTX-CAT6AS/FTP4P23LH GSWB |
4×2×0.57/0.58 |
14.0±1.5 |
200 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
