Firetox Flame Retardant Cables

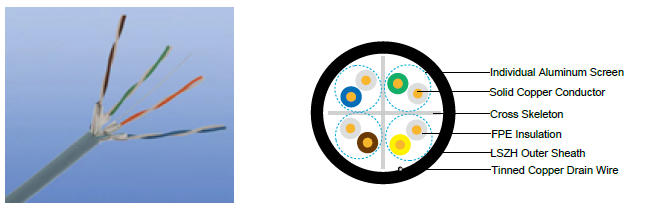

LSZH Flame Retardant CAT6A Data Cables
FTX-CAT6AU/FTP4P23LH
FTX-CAT6AF/FTP4P23LH
FTX-CAT6AS/FTP4P23LH
APPLICATION:
Cat6A Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. The LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS:
ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568
Approvals:
ETL Certification (103488703CRT-001a, 103488703CRT-001d,)
FIRE PERFORMANCE:
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
|---|---|
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
| CPR Compliance | B2ca,Cca |
CABLE CONSTRUCTION:
Conductors: 23AWG solid bare copper.
Insulation: FPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Individual Screen: Aluminum/polyester tape with a tinned copper drain wire.
Wrapping Tape: Flame retardant tape and water blocking tape.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

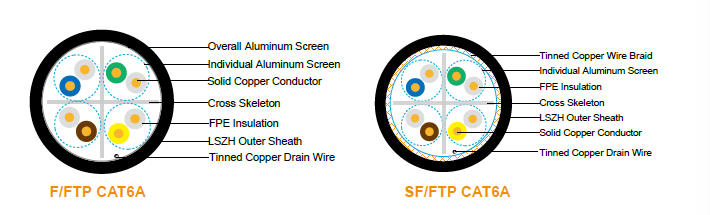

Cat6 F/FTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6 SF/FTP: These cables have double collective shielding of Aluminium/polyester tape with drain wire & copper wire braid.
PHYSICAL AND THERMAL PROPERTIES:
Temperature range: -20°C - +70°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
ELECTRICAL PROPERTIES:
| AWG | 23 |
|
|---|---|---|
| Nominal Conductor Diameter | mm | 0.56/0.57/0.58 |
| Maximum DC Resistance@20°C | Ω/100m | 7.5 |
| Maximum DCR Unbalance | % | 3 |
| Maximum Mutual Capacitance | pF/m | 5.8 |
| Maximum Capacitance Unbalance | pF/100m | 30 |
| Characteristic Impedance@1-100MHz | Ω | 100±20 |
| Maximum Propagation Delay Skew | ns/100m | 18 |
TRANSMISSION PROPERTIES:
| FREQ MHz |
Attenuation dB/100m | NEXT dB |
PSNEXT dB |
ELFEXT dB/100m |
PSELFEXT dB/100m |
RL dB |
|---|---|---|---|---|---|---|
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS:
| Cable Code | Conductor Diameter | Diameter Over Insulation | Pairs | Screen | Aprrox. Overall Diameter |
|---|---|---|---|---|---|
| mm | mm | mm | |||
FTX-CAT6AU/FTP4P23LH |
0.56/0.57 |
1.32 |
4 |
Individual Aluminum Tape Screen |
7.6 |
FTX-CAT6AF/FTP4P23LH |
0.57/0.58 |
1.32 |
4 |
Individual Aluminum Tape Screen & Overall Aluminum Tape Screen |
7.9 |
FTX-CAT6AS/FTP4P23LH |
0.57/0.58 |
1.32 |
4 |
Individual Aluminum Tape Screen & |
8.2 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
