Fire Resisting Cables
Fire Resistant Copper Braid Screened Instrumentation Cables (Multicore)
RE-2X(C)H...CI
APPLICATION:
Fire Resistant Copper Braid Screened Instrumentation Cables (Multicore) are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, dataand voice transmission signals and services. Also used for the interconnection of electrical equipment andinstruments, the LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS:
Basic design to BS EN 50288-7 (formerly BS 5308)
Fire Performance:
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120) |
|---|---|
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
Voltage Rating:
300, 500V

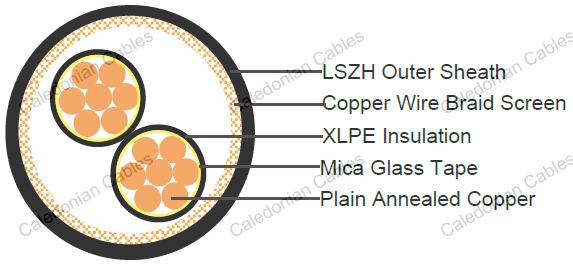

Cable Construction:
Conductor： Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier： Mica glass tape.
Insulation： Extruded XLPE compound according to EN 50290-2-29.
Overall Screen： Copper braid screen.
Outer Sheath： Halogen free flame retardant compound to EN 50290-2-27.
Colour code： Insulation Colour
Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath： Black. Other colours can be offered upon request.
Physical and thermal properties:
Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 7.5 x Overall Diameter
Construction Parameters:
Number of core/ Nominal cross section area of conductor |
Number and diameter of wire | Thickness of insulation | Thickness of outer sheath | Reference overall diameter | Conductor Resistance |
|---|---|---|---|---|---|
| mm² | n×mm | mm | mm | mm | Ω/km |
2 x 0.5 |
7×0.31 |
0.6 |
0.9 |
8.2 |
36.0 |
3 x 0.5 |
7×0.31 |
0.6 |
0.9 |
8.7 |
36.0 |
4 x 0.5 |
7×0.31 |
0.6 |
0.9 |
9.5 |
36.0 |
5 x 0.5 |
7×0.31 |
0.6 |
0.9 |
10.3 |
36.0 |
8 x 0.5 |
7×0.31 |
0.6 |
1 |
12.4 |
36.0 |
10 x 0.5 |
7×0.31 |
0.6 |
1 |
14.6 |
36.0 |
12 x 0.5 |
7×0.31 |
0.6 |
1.1 |
15.2 |
36.0 |
14 x 0.5 |
7×0.31 |
0.6 |
1.1 |
16 |
36.0 |
16 x 0.5 |
7×0.31 |
0.6 |
1.1 |
16.9 |
36.0 |
20 x 0.5 |
7×0.31 |
0.6 |
1.2 |
18.5 |
36.0 |
24 x 0.5 |
7×0.31 |
0.6 |
1.2 |
21.1 |
36.0 |
27 x 0.5 |
7×0.31 |
0.6 |
1.2 |
21.6 |
36.0 |
30 x 0.5 |
7×0.31 |
0.6 |
1.3 |
22.6 |
36.0 |
37 x 0.5 |
7×0.31 |
0.6 |
1.3 |
24.4 |
36.0 |
40 x 0.5 |
7×0.31 |
0.6 |
1.3 |
25.4 |
36.0 |
50 x 0.5 |
7×0.31 |
0.6 |
1.6 |
28.9 |
36.0 |
2 x 0.75 |
7×0.37 |
0.6 |
0.9 |
8.5 |
24.5 |
3 x 0.75 |
7×0.37 |
0.6 |
0.9 |
9 |
24.5 |
4 x 0.75 |
7×0.37 |
0.6 |
0.9 |
9.9 |
24.5 |
5 x 0.75 |
7×0.37 |
0.6 |
1 |
11 |
24.5 |
8 x 0.75 |
7×0.37 |
0.6 |
1 |
13 |
24.5 |
10 x 0.75 |
7×0.37 |
0.6 |
1 |
15.3 |
24.5 |
12 x 0.75 |
7×0.37 |
0.6 |
1 |
15.8 |
24.5 |
14 x 0.75 |
7×0.37 |
0.6 |
1.1 |
16.8 |
24.5 |
16 x 0.75 |
7×0.37 |
0.6 |
1.1 |
17.8 |
24.5 |
20 x 0.75 |
7×0.37 |
0.6 |
1.2 |
19.5 |
24.5 |
24 x 0.75 |
7×0.37 |
0.6 |
1.3 |
22.4 |
24.5 |
27 x 0.75 |
7×0.37 |
0.6 |
1.3 |
22.9 |
24.5 |
30 x 0.75 |
7×0.37 |
0.6 |
1.3 |
23.8 |
24.5 |
37 x 0.75 |
7×0.37 |
0.6 |
1.4 |
25.9 |
24.5 |
40 x 0.75 |
7×0.37 |
0.6 |
1.4 |
26.9 |
24.5 |
50 x 0.75 |
7×0.37 |
0.6 |
1.6 |
30.4 |
24.5 |
2 x 1.0 |
7×0.44 |
0.6 |
0.9 |
9 |
18.1 |
3 x 1.0 |
7×0.44 |
0.6 |
0.9 |
9.5 |
18.1 |
4 x 1.0 |
7×0.44 |
0.6 |
1 |
10.6 |
18.1 |
5 x 1.0 |
7×0.44 |
0.6 |
1 |
11.6 |
18.1 |
8 x 1.0 |
7×0.44 |
0.6 |
1 |
13.7 |
18.1 |
10 x 1.0 |
7×0.44 |
0.6 |
1.1 |
16.3 |
18.1 |
12 x 1.0 |
7×0.44 |
0.6 |
1.1 |
16.9 |
18.1 |
14 x 1.0 |
7×0.44 |
0.6 |
1.1 |
17.8 |
18.1 |
16 x 1.0 |
7×0.44 |
0.6 |
1.2 |
19 |
18.1 |
20 x 1.0 |
7×0.44 |
0.6 |
1.2 |
20.5 |
18.1 |
24 x 1.0 |
7×0.44 |
0.6 |
1.3 |
23.7 |
18.1 |
27 x 1.0 |
7×0.44 |
0.6 |
1.3 |
24.2 |
18.1 |
30 x 1.0 |
7×0.44 |
0.6 |
1.3 |
25.1 |
18.1 |
37 x 1.0 |
7×0.44 |
0.6 |
1.4 |
27.4 |
18.1 |
40 x 1.0 |
7×0.44 |
0.6 |
1.4 |
28.4 |
18.1 |
50 x 1.0 |
7×0.44 |
0.6 |
1.8 |
34.2 |
18.1 |
2 x 1.5 |
7×0.53 |
0.6 |
0.9 |
9.5 |
12.1 |
3 x 1.5 |
7×0.53 |
0.6 |
1 |
10.3 |
12.1 |
4 x 1.5 |
7×0.53 |
0.6 |
1 |
11.3 |
12.1 |
5 x 1.5 |
7×0.53 |
0.6 |
1 |
12.3 |
12.1 |
8 x 1.5 |
7×0.53 |
0.6 |
1.1 |
14.8 |
12.1 |
10 x 1.5 |
7×0.53 |
0.6 |
1.2 |
17.6 |
12.1 |
12 x 1.5 |
7×0.53 |
0.6 |
1.2 |
18.2 |
12.1 |
14 x 1.5 |
7×0.53 |
0.6 |
1.2 |
19.2 |
12.1 |
16 x 1.5 |
7×0.53 |
0.6 |
1.2 |
20.2 |
12.1 |
20 x 1.5 |
7×0.53 |
0.6 |
1.3 |
22.1 |
12.1 |
24 x 1.5 |
7×0.53 |
0.6 |
1.4 |
25.5 |
12.1 |
27 x 1.5 |
7×0.53 |
0.6 |
1.4 |
26.1 |
12.1 |
30 x 1.5 |
7×0.53 |
0.6 |
1.4 |
27.1 |
12.1 |
37 x 1.5 |
7×0.53 |
0.6 |
1.5 |
29.5 |
12.1 |
40 x 1.5 |
7×0.53 |
0.6 |
1.5 |
30.6 |
12.1 |
50 x 1.5 |
7×0.53 |
0.6 |
1.8 |
34.8 |
12.1 |
2 x 2.5 |
7×0.67 |
0.7 |
1 |
10.9 |
7.41 |
3 x 2.5 |
7×0.67 |
0.7 |
1 |
11.6 |
7.41 |
4 x 2.5 |
7×0.67 |
0.7 |
1 |
12.7 |
7.41 |
5 x 2.5 |
7×0.67 |
0.7 |
1.1 |
14.2 |
7.41 |
8 x 2.5 |
7×0.67 |
0.7 |
1.2 |
17 |
7.41 |
10 x 2.5 |
7×0.67 |
0.7 |
1.3 |
20.3 |
7.41 |
12 x 2.5 |
7×0.67 |
0.7 |
1.3 |
21 |
7.41 |
14 x 2.5 |
7×0.67 |
0.7 |
1.3 |
22.1 |
7.41 |
16 x 2.5 |
7×0.67 |
0.7 |
1.4 |
23.5 |
7.41 |
20 x 2.5 |
7×0.67 |
0.7 |
1.4 |
25.5 |
7.41 |
24 x 2.5 |
7×0.67 |
0.7 |
1.5 |
29.4 |
7.41 |
27 x 2.5 |
7×0.67 |
0.7 |
1.6 |
30.3 |
7.41 |
30 x 2.5 |
7×0.67 |
0.7 |
1.6 |
31.4 |
7.41 |
37 x 2.5 |
7×0.67 |
0.7 |
1.7 |
34.2 |
7.41 |
40 x 2.5 |
7×0.67 |
0.7 |
1.7 |
35.5 |
7.41 |
50 x 2.5 |
7×0.67 |
0.7 |
1.9 |
38.5 |
7.41 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
