ACCL (ALMR) 600

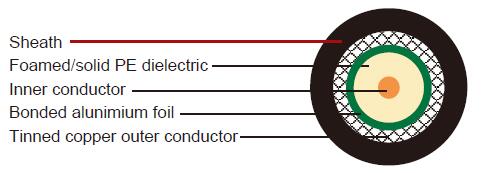

Construction:
| Inner conductor | CCA(copper clad aluminium) |
Φ4.47 mm |
|---|---|---|
| Dielectric | Foam /Solid PE |
Φ11.56 mm |
| Shield | Bonded aluminium foil |
Φ11.71 mm |
| Outer conductor | Tinned copper braid |
Φ12.50 mm |
| Sheath | LSZH |
Φ14.99 mm |
| Flame retardance | IEC60332-3-22 |
|
Electrical & Mechanical Characteristics:
| Impedance | 50±3 Ohm |
|---|---|
| Nominal capacitance | 76.8 pF/m |
| Velocity of propagation | 87% |
| Insulation resistance | >5000 Mohm.Km |
| Inner conductor resistance | 1.74 Ohm/Km |
| Outer conductor resistance | 3.94 Ohm/Km |
| Operating temperature range | -40°C - +85 °C |
| Min.bending radius | 75 mm |
Attenuation:
| Frequency(MHz) | Attenuation (dB/100 ft) | Max. Attenuation(dB/100ft) |
|---|---|---|
| 30 | 0.4 | 0.51 |
| 50 | 0.5 | 0.66 |
| 150 | 1.0 | 1.07 |
| 220 | 1.2 | 1.28 |
| 450 | 1.7 | 1.88 |
| 900 | 2.5 | 2.8 |
| 1500 | 3.3 | 3.6 |
| 1800 | 3.7 | 4.1 |
| 2000 | 3.9 | 4.3 |
| 2500 | 4.4 | 5.0 |
| 3000 | 4.8 | 5.5 |
| 5800 | 7.3 | 8.2 |
