Prepackaged High Silicon Cast Iron Anode
Description:

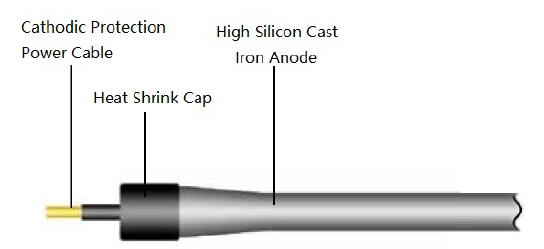

The whole prepackaged anode consists of two separate anodes of 1524 mm, for field assembly to make up a full length of 3048mm. The top anode is welded with Halar/ HMWPE insulated cathodic protection cable of a fixed length. The cable connection is sealed with epoxy or heat shrinkable cap to provide a watertight protection. The cable length may vary depending on its position in the well.

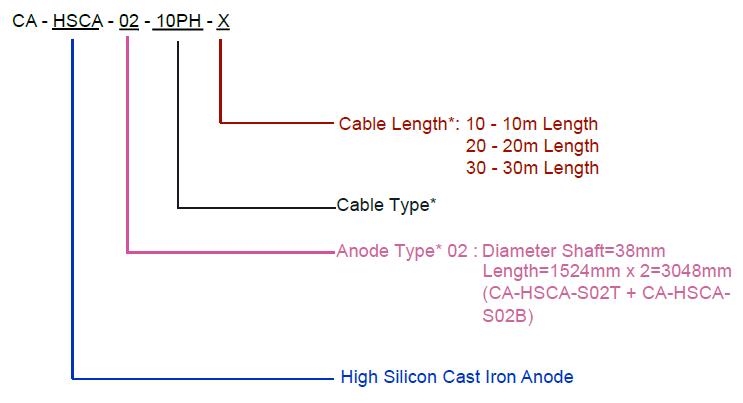

Ordering Information:
Cable Type:
| Insulation / Sheath |
Cross Sectional Size (7 stranded core) | |||||
|---|---|---|---|---|---|---|
8AWG |
6AWG |
4AWG |
2AWG |
16mm² |
10mm² |
|
| XLPE/PVC | 8AXP |
6AXP |
4AXP |
2AXP |
16XP |
10XP |
| PVDF/HMWPE | 8APH |
6APH |
4APH |
2APH |
16PH |
10PH |
| EPR/CSP | 8AEC |
6AEC |
4AEC |
2AEC |
16EC |
10EC |
*Anode Type
| Type | Dimension (mm) | ||
|---|---|---|---|
| Diameter Shaft | Diameter Head | Length | |
| CA-HSCA-S01T | 38 |
56 |
1220 |
| CA-HSCA-S01B | 38 |
56 |
1220 |
| CA-HSCA-S02T | 38 |
56 |
1524 |
| CA-HSCA-S02B | 38 |
56 |
1524 |
*Cable Length X
10 — 10m
20 — 20m
30 — 30m
40 — 40m
