BS 6346 PVC Insulated Cables,1900/3300V
Three-core 1900/3300 V cables with solid aluminum conductors
Application :
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

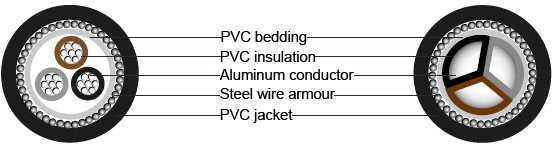

Construction :
Conductor: Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation: PVC(Polyvinyl Chloride) type TI1
| Colour Code | 1 Core : | Brown |
|---|---|---|
| 2 Cores: | Brown, Blue | |
| 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers | ||
| Filler(optional) Binder Tape(optional) Inner Sheath/ Bedding Armour Outer Sheath | PVC or Polypropylene yarn Polyester (Mylar) tape PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum WireArmour) Multi Core: SWA (Steel Wire or Tape Armour) PVC(Polyvinyl Chloride), type TM1 | |
Technical Information :
Voltage rating 1900/3300V
Temperature rating -20°C to +60°C
Bending radius Single core: 10 x overall diameter
Multicores: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Three-core 1900/3300 V cables with solid aluminum conductors
| Nominal cross-sectional area | Nominal insulation thickness | Nominal bedding thickness |
Nominal Armor dia. | Nominal sheath thickness | Approx.overall diameter | Approx.cable weight |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | mm | kg/mm |
| 3x16 | 2.2 | 1.0 | 1.6 | 1.8 | 28.9 | 1630 |
| 3x25 | 2.2 | 1.0 | 1.6 | 1.8 | 31.3 | 1880 |
| 3x35 | 2.2 | 1.0 | 1.6 | 1.9 | 33.7 | 2145 |
| 3x35* | 2.2 | 1.0 | 1.6 | 1.9 | 30.6 | 2145 |
| 3x50* | 2.2 | 1.2 | 2.0 | 2.0 | 33.9 | 2880 |
| 3x70* | 2.2 | 1.2 | 2.0 | 2.1 | 36.9 | 3340 |
| 3x95* | 2.2 | 1.2 | 2.0 | 2.2 | 40.0 | 3870 |
| 3x120* | 2.2 | 1.4 | 2.5 | 2.3 | 44.0 | 4980 |
| 3x150* | 2.2 | 1.4 | 2.5 | 2.4 | 46.5 | 5585 |
| 3x185* | 2.2 | 1.4 | 2.5 | 2.5 | 49.6 | 6250 |
| 3x240* | 2.2 | 1.6 | 2.5 | 2.6 | 54.2 | 7315 |
| 3x300* | 2.4 | 1.6 | 2.5 | 2.8 | 59.2 | 8365 |
