Type G Two-Conductor Flat Portable Power Cable 2kV

Applications

Type G Two-Conductor Flat Portable Power Cables 2kV are designed for use on D.C. off-track mining

equipment, such as D.C. shuttle cars, drills,cutting and loading machines.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA-C22.2 No.96

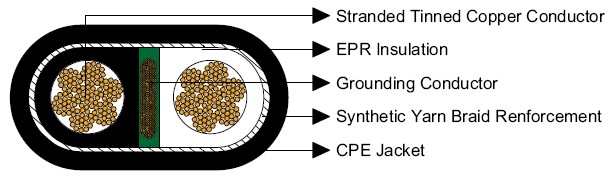

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Grounding Conductor:Tinned copper conductor with a green outer covering.

Reinforcement: Synthetic yarn.

Sheath: Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon

request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Nominal Insulation Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	inch	mm	inch	mm	lbs/kft	kg/km	A
2×6	133	8	0.06	1.5	0.56×1.02	14.2×25.9	500	744	95
2×4	259	7	0.06	1.5	0.61×1.15	15.5×29.2	635	945	127
2×3	259	6	0.06	1.5	0.68×1.26	17.3×32.0	785	1170	145
2×2	259	5	0.06	1.5	0.73×1.35	18.5×34.3	935	1390	167
2×1	259	4	0.08	2.0	0.81×1.55	20.6×39.4	1185	1760	191
2×1/0	259	3	0.08	2.0	0.93×1.67	23.6×42.4	1470	2190	217
2×2/0	329	2	0.08	2.0	0.99×1.85	25.1×47.0	1790	2660	250
2×3/0	413	1	0.08	2.0	1.03×2.00	26.2×50.8	2145	3190	286
2×4/0	532	1/0	0.08	2.0	1.10×2.10	27.9×53.3	2545	3790	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
