Type G Three-Conductor Portable Power Cable 2kV

Applications

Type G Three-Conductor Portable Power Cables 2kV are designed for use in heavy duty services as power

supply cable, mobile and portable electrical.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

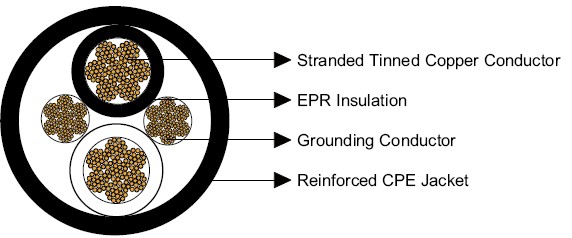

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Grounding Conductor:Tinned copper conductor with a green outer covering.

Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be

offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Nominal Insulation Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	inch	mm	inch	mm	lbs/kft	kg/km	A
2×8	133	10	0.06	1.5	0.81	20.6	495	736	72
2×6	259	10	0.06	1.5	0.93	23.6	650	967	95
2×4	259	8	0.06	1.5	1.08	27.4	940	1399	127
2×2	259	6	0.06	1.5	1.27	32.3	1360	2023	167
2×1	259	5	0.08	2.0	1.44	36.6	1730	2574	191
2×1/0	259	4	0.08	2.0	1.52	38.6	2000	2976	217
2×2/0	259	3	0.08	2.0	1.65	41.9	2240	3333	250
2×3/0	259	2	0.08	2.0	1.77	45.0	2860	4255	286
2×4/0	259	1	0.08	2.0	1.92	48.8	3500	5207	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
