Type G-GC Three-Conductor Flat Portable Power Cable 2kV

Applications

These flat parallel cables are designed for use on ACmining equipment, such as A.C. shuttle cars, drills, cutting

and loading machines.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA-C22.2 No.96

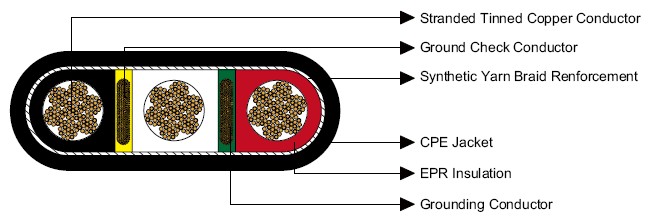

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Ground Check Conductor:Tinned copper conductor with a yellow insulation.

Grounding Conductor:Tinned copper conductor with a green outer covering.

Reinforcement: Synthetic yarn.

Sheath: Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon

request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	lbs/kft	kg/km	A
3×6	133	8	8	0.06	1.5	0.66×1.67	16.8×42.4	900	1340	79
3×4	259	7	8	0.06	1.5	0.72×1.87	18.3×47.5	1175	1750	104
3×3	259	6	6	0.06	1.5	0.78×2.08	19.8×52.8	1395	2080	120
3×2	259	5	6	0.06	1.5	0.85×2.23	21.6×56.6	1625	2415	138
3×1	259	4	6	0.08	2.0	0.96×2.50	24.4×63.5	2090	3110	161
3×1/0	259	3	5	0.08	2.0	1.01×2.67	25.6×67.8	2470	3675	186
3×2/0	329	2	5	0.08	2.0	1.09×2.86	27.7×68.1	2940	4375	215
3×3/0	413	1	5	0.08	2.0	1.18×3.12	30.0×79.2	3515	5230	249
3×4/0	532	1/0	5	0.08	2.0	1.24×3.30	31.5×83.8	4245	6315	287

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
