LSZH Flame Retardant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)

RE-2X(St)HSWAH PiMF

APPLICATION

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The

galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial

process manufacturing plants for communication, data and voice transmission signals and services. Also used for

the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume

emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

RE-2X(St)HSWAH PiMF

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2

Minimum Smoke Emission

IEC 61034-2; EN 61034-2

VOLTAGE RATING

300V, 500V

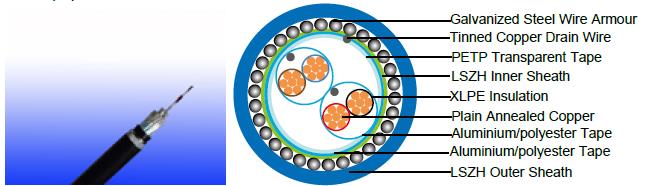

CABLE CONSTRUCTION

Conductor : Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and

5.

Insulation : Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as

options.

Pairs : Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or

150mm (for 2.5mm²).

Individual Screen : Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact

with tinned copper drain wire, 0.5mm².

Binder tape : PETP transparent tape.

Overall Screen : Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact

with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with

copper braid screen can be offered as option.

Inner Sheath : Thermoplastic LSZH compound.

Amouring : Galvanized steel wire armour.

Outer Sheath : Thermoplastic LSZH compound according to EN 50290-2-22.

Outer Sheath Option : Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance,

anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour : Colours and/or additional ring markings and/or symbols achieved by the use of coloured

insulation or by a coloured surface using extrusion, printing or painting.

Outer Sheath : Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation : -30°C - +90°C

Temperature range during installation : -5°C - +50°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 10 x Overall Diameter

ELECTRICAL PROPERTIES

300V


Conductor Area Size

mm²

0.5

0.75

1.0

1.5

Insulation Thickness (nominal)

mm

0.4

0.4

0.4

0.5

Insulation Thickness (minimum)

mm

0.26

0.26

0.26

0.35

Conductor Resistance (20°C)

ohm/km

36.7

25.0

18.5

12.3

Minimum Insulation Resistance (20°C)

Mohm/km

1000

Maximum Mutual Capacitance

nf/km

250

Capacitance Unbalance

pf/500m

500

Maximum L/R (ratio)

μH/Ω

25

25

25

40

Operating Voltage

V

300

Dielectric Strength for 1 Minute

AC

V

≥1000

DC

V

≥2000

500V


Conductor Area Size

mm²

0.5

0.75

1.0

1.5

2.5

Insulation Thickness (nominal)

mm

0.6

0.6

0.6

0.6

0.7

Insulation Thickness (minimum)

mm

0.44

0.44

0.44

0.44

0.53

Conductor resistance (20°C)

ohm/km

36.7

25.0

18.5

12.3

7.4

Minimum Insulation Resistance (20°C)

Mohm/km

1000

Maximum Mutual Capacitance

nf/km

250

Capacitance Unbalance

pf/500m

500

Maximum L/R (ratio)

μH/Ω

25

25

25

40

60

Operating Voltage

V

500

Dielectric Strength for 1 Minute

AC

V

≥2000

DC

V

≥3000

CONSTRUCTION PARAMETERS
300V


Conductor

RE-2X(St)HSWAH PiMF

No. of Pairs X Cross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Inner Sheath Thickness

Nominal Armour Wire Diameter

Nominal Outer Sheath Thickness

Approx. Overall Diameter

Approx. Weight

mm²



mm

mm

mm

mm

mm

kg/km

0.5mm²

2x2x0.5

2

0.4

1.0

0.9

1.4

13.2

353

3x2x0.5

2

0.4

1.0

0.9

1.4

13.6

390

4x2x0.5

2

0.4

1.1

0.9

1.5

14.9

458

5x2x0.5

2

0.4

1.1

0.9

1.5

15.8

511

8x2x0.5

2

0.4

1.1

0.9

1.5

17.7

639

10x2x0.5

2

0.4

1.2

1.25

1.6

21.0

908

12x2x0.5

2

0.4

1.2

1.25

1.6

21.5

970

16x2x0.5

2

0.4

1.3

1.25

1.7

23.6

1160

20x2x0.5

2

0.4

1.4

1.25

1.7

25.3

1325

24x2x0.5

2

0.4

1.5

1.25

1.8

28.4

1565

0.75mm²

2x2x0.75

2

0.4

1.0

0.9

1.4

13.8

387

3x2x0.75

2

0.4

1.1

0.9

1.5

14.7

450

4x2x0.75

2

0.4

1.1

0.9

1.5

15.6

509

5x2x0.75

2

0.4

1.2

0.9

1.5

16.8

583

8x2x0.75

2

0.4

1.2

0.9

1.6

19.1

747

10x2x0.75

2

0.4

1.3

1.25

1.6

22.5

1040

12x2x0.75

2

0.4

1.3

1.25

1.6

23.2

1129

16x2x0.75

2

0.4

1.4

1.25

1.7

25.3

1338

20x2x0.75

2

0.4

1.5

1.25

1.8

27.3

1550

24x2x0.75

2

0.4

1.5

1.25

1.8

30.3

1793

1.0mm²

2x2x1.0

2

0.4

1.0

0.9

1.4

14.5

427

3x2x1.0

2

0.4

1.1

0.9

1.5

15.5

502

4x2x1.0

2

0.4

1.2

0.9

1.5

16.8

584

5x2x1.0

2

0.4

1.2

0.9

1.6

18.1

668

8x2x1.0

2

0.4

1.2

1.25

1.6

21.1

978

10x2x1.0

2

0.4

1.3

1.25

1.7

24.2

1197

12x2x1.0

2

0.4

1.4

1.25

1.7

25.0

1310

16x2x1.0

2

0.4

1.5

1.25

1.8

27.5

1578

20x2x1.0

2

0.4

1.5

1.25

1.8

29.3

1796

24x2x1.0

2

0.4

1.6

1.6

1.9

33.6

2334

1.5mm²

2x2x1.5

2

0.5

1.1

0.9

1.5

16.6

534

3x2x1.5

2

0.5

1.2

0.9

1.6

17.7

630

4x2x1.5

2

0.5

1.2

0.9

1.6

19.0

723

5x2x1.5

2

0.5

1.3

1.25

1.6

21.2

961

8x2x1.5

2

0.5

1.3

1.25

1.7

24.2

1243

10x2x1.5

2

0.5

1.4

1.25

1.8

27.9

1522

12x2x1.5

2

0.5

1.5

1.25

1.8

28.9

1672

16x2x1.5

2

0.5

1.6

1.6

1.9

32.5

2224

20x2x1.5

2

0.5

1.7

1.6

2.0

35.1

2578

24x2x1.5

2

0.5

1.8

1.6

2.0

39.3

3021

500V


Conductor

RE-2X(St)HSWAH PiMF

No. of Pairs X Cross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Inner Sheath Thickness

Nominal Armour Wire Diameter

Nominal Outer Sheath Thickness

Approx. Overall Diameter

Approx. Weight

mm²



mm

mm

mm

mm

mm

kg/km

0.5mm²

2x2x0.5

2

0.6

1.0

0.9

1.4

14.6

409

3x2x0.5

2

0.6

1.1

0.9

1.5

15.6

473

4x2x0.5

2

0.6

1.1

0.9

1.5

16.6

533

5x2x0.5

2

0.6

1.2

0.9

1.6

18.1

620

8x2x0.5

2

0.6

1.2

1.25

1.6

21.1

900

10x2x0.5

2

0.6

1.3

1.25

1.7

24.3

1098

12x2x0.5

2

0.6

1.4

1.25

1.7

25.1

1192

16x2x0.5

2

0.6

1.5

1.25

1.8

27.6

1422

20x2x0.5

2

0.6

1.5

1.25

1.8

29.4

1600

24x2x0.5

2

0.6

1.6

1.6

1.9

33.7

2099

0.75mm²

2x2x0.75

2

0.6

1.1

0.9

1.5

15.6

463

3x2x0.75

2

0.6

1.1

0.9

1.5

16.3

516

4x2x0.75

2

0.6

1.2

0.9

1.6

17.8

607

5x2x0.75

2

0.6

1.2

0.9

1.6

19.0

681

8x2x0.75

2

0.6

1.3

1.25

1.6

22.4

1012

10x2x0.75

2

0.6

1.4

1.25

1.7

25.7

1237

12x2x0.75

2

0.6

1.4

1.25

1.7

26.4

1326

16x2x0.75

2

0.6

1.5

1.25

1.8

29.1

1588

20x2x0.75

2

0.6

1.6

1.6

1.9

32.1

2033

24x2x0.75

2

0.6

1.7

1.6

2.0

36.1

2394

1.0mm²

2x2x1.0

2

0.6

1.1

0.9

1.5

16.4

505

3x2x1.0

2

0.6

1.2

0.9

1.5

17.3

581

4x2x1.0

2

0.6

1.2

0.9

1.6

18.7

672

5x2x1.0

2

0.6

1.3

1.25

1.6

20.9

896

8x2x1.0

2

0.6

1.3

1.25

1.7

23.8

1144

10x2x1.0

2

0.6

1.4

1.25

1.7

27.2

1386

12x2x1.0

2

0.6

1.5

1.25

1.8

28.3

1531

16x2x1.0

2

0.6

1.6

1.6

1.9

32.0

2035

20x2x1.0

2

0.6

1.7

1.6

1.9

34.2

2326

24x2x1.0

2

0.6

1.8

1.6

2.0

38.5

2743

1.5mm²

2x2x1.5

2

0.6

1.1

0.9

1.5

17.3

563

3x2x1.5

2

0.6

1.2

0.9

1.6

18.5

665

4x2x1.5

2

0.6

1.3

0.9

1.6

20.0

778

5x2x1.5

2

0.6

1.3

1.25

1.7

22.4

1027

8x2x1.5

2

0.6

1.4

1.25

1.7

25.6

1333

10x2x1.5

2

0.6

1.5

1.25

1.8

29.6

1632

12x2x1.5

2

0.6

1.6

1.25

1.9

30.7

1809

16x2x1.5

2

0.6

1.7

1.6

2.0

34.6

2397

20x2x1.5

2

0.6

1.8

1.6

2.0

37.1

2754

24x2x1.5

2

0.6

1.9

1.6

2.1

41.8

3251

2.5mm²

2x2x2.5

2

0.7

1.2

0.9

1.6

19.9

718

3x2x2.5

2

0.7

1.3

1.25

1.0

21.1

972

4x2x2.5

2

0.7

1.4

1.25

1.7

23.8

1150

5x2x2.5

2

0.7

1.5

1.25

1.8

26.0

1341

8x2x2.5

2

0.7

1.6

1.25

1.8

29.9

1762

10x2x2.5

2

0.7

1.7

1.6

2.0

35.5

2400

12x2x2.5

2

0.7

1.8

1.6

2.0

36.6

2631

16x2x2.5

2

0.7

1.9

1.6

2.1

40.4

3176

20x2x2.5

2

0.7

2.1

1.6

2.2

43.8

3728

24x2x2.5

2

0.7

2.2

1.6

2.4

49.6

4433
