组合电缆 |
 |
|||||||||||
|
|||||||||||||
|
|||||||||||||
组合电缆

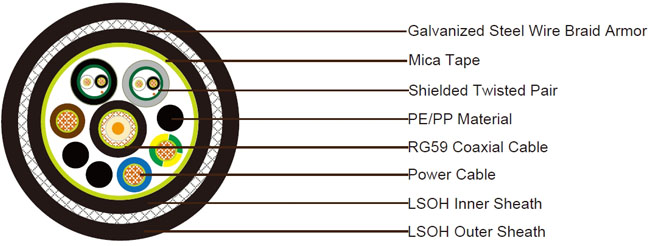

1xRG59+3x2.5电力电缆+2x1x2x24AWG数据对线SWB 低烟无卤LSZH护套耐火&耐泥浆复合电缆
1x75Ohm RG59同轴电缆
| Conductor | 0.58mm Solid copper conductor |
|---|---|
Insulation |
Polyethylene. Thickness 1.56mm |
Shield |
Braid of bare copper wire. Coverage ≥ 95% |
Fire Barrier |
Mica tape |
Sheath |
FRLSZH sheath. Nominal outer diameter 6.7mm |
Sheath Color |
Black |
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
| Conductor | 7/0.2mm Stranded tinned copper |
|---|---|
Insulation |
XLPE. Thickness 0.7mm |
Fire Barrier |
Mica tape |
Insulation Color |
Black and white |
Shield |
Aluminium polyester tape |
Drain Wire |
24 AWG stranded tinned copper drain wire |
Sheath |
FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm |
Sheath Color |
Black |
3x2.5mm² Power Cable( around coaxial cable)
| Conductor | 2.5mm² Stranded tinned copper wire |
|---|---|
Fire Barrier |
Mica tape |
Insulation |
XLPE. Nominal outer diameter 4.2mm |
Insultion Color |
Blue, Brown and Green/Yellow |
Element Assembly
| Inner Sheath | PE or PP material |
|---|---|
Fire Barrier |
Mica tape |
Inner Sheath |
Thermoplastic SHF1, black, thickness 1.5mm |
Armor |
Galvanized steel wire braid, coverage 95% |
Outer Sheath |
SHF1/SHF Mud, thickness 1.5mm, nominal outer diameter 31.0±2.0mm |
Sheath Color |
Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 12.1Ohm/km
≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance:≥1000 MOhmxkm
Element Assembly:
Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance: Low Smoke
Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331Mud
Resistant:NEK606
