H05VV5-F(NYSLYÖ-JZ)

Application and Description

H05VV5-F(NYSLYÖ-JZ) cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies.
Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working
processes.

Standard and Approval

HD 21.13 S1, VDE-0281 Part-13, CEI 20-20/13, CEI 20-35 (EN60332-1) , CEI 20-52, UL 2464

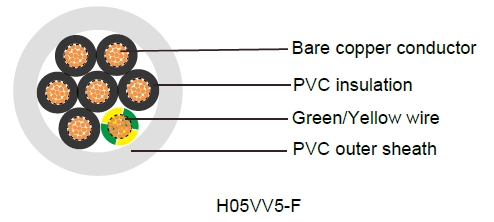

Cable Construction

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
PVC insulation T12 to DIN VDE 0281 part 1
Green-yellow grounding (3 conductors and above)
Cores to VDE-0293 colors
PVC sheath TM5 to DIN VDE 0281 part 1

Technical Characteristics

Working voltage: 300/500v
Test voltage: 2000volts
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C
Short circuit Temperature: +150º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km

H05VV5-F(NYSLYÖ-JZ)            H05VV5-F(NYSLYÖ-JZ)

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
20(16/32) 2x0.50 0.6 0.7 5.6 9.7 46
18(24/32) 2x0.75 0.6 0.8 6.2 14.4 52
17(32/32) 2x1 0.6 0.8 6.6 19.2 66
16(30/30) 2x1.5 0.7 0.8 7.6 29 77
14(30/50) 2x2.5 0.8 0.9 9.2 48 110
20(16/32) 3x0.50 0.6 0.7 5.9 14.4 54
18(24/32) 3x0.75 0.6 0.8 6.6 21.6 68
17(32/32) 3x1 0.6 0.8 7 29 78
16(30/30) 3x1.5 0.7 0.9 8.2 43 97
14(30/50) 3x2.5 0.8 1 10 72 154
20(16/32) 4x0.50 0.6 0.8 6.6 19 65
18(24/32) 4x0.75 0.6 0.8 7.2 28.8 82
17(32/32) 4x1 0.6 0.8 7.8 38.4 104
16(30/30) 4x1.5 0.7 0.9 9.3 58 128
14(30/50) 4x2.5 0.8 1.1 10.9 96 212
20(16/32) 5x0.50 0.6 0.8 7.3 24 80
18(24/32) 5x0.75 0.6 0.9 8 36 107
17(32/32) 5x1 0.6 0.9 8.6 48 123
16(30/30) 5x1.5 0.7 1 10.3 72 149
14(30/50) 5x2.5 0.8 1.1 12.1 120 242
20(16/32) 6x0.50 0.6 0.9 8.1 28.8 104
18(24/32) 6x0.75 0.6 0.9 8.7 43.2 132
17(32/32) 6x1 0.6 1 9.5 58 152
16(30/30) 6x1.5 0.7 1.1 11.2 86 196
14(30/50) 6x2.5 0.8 1.2 13.2
20(16/32) 7x0.50 0.6 0.9 8.1 33.6 119
18(24/32) 7x0.75 0.6 1 8.9 50.5 145
17(32/32) 7x1 0.6 1 9.5 67 183
16(30/30) 7x1.5 0.7 1.2 11.4 101 216
14(30/50) 7x2.5 1.3 0.8 13.4 168 350
20(16/32) 12x0.50 0.6 1.1 10.9 58 186
18(24/32) 12x0.75 0.6 1.1 11.7 86 231
17(32/32) 12x1 0.6 1.2 12.8 115 269
16(30/30) 12x1.5 0.7 1.3 15 173 324
14(30/50) 12x2.5 1.5 0.8 17.9 288 543
20(16/32) 18x0.50 0.6 1.2 12.9 86 251
18(24/32) 18x0.75 0.6 1.3 14.1 130 313
17(32/32) 18x1 0.6 1.3 15.1 173 400
16(30/30) 18x1.5 0.7 1.5 18 259 485
14(30/50) 18x2.5 1.8 0.8 21.6 432 787
20(16/32) 25x0.50 0.6 1.4 15.4 120 349
18(24/32) 25x0.75 0.6 1.5 16.8 180 461
17(32/32) 25x1 0.6 1.5 18 240 546
16(30/30) 25x1.5 0.7 1.8 21.6 360 671
14(30/50) 25x2.5 0.8 2.1 25.8 600 1175
20(16/32) 36x0.50 0.6 1.5 17.7 172 510
18(24/32) 36x0.75 0.6 1.6 19.3 259 646
17(32/32) 36x1 0.6 1.7 20.9 346 775
16(30/30) 36x1.5 0.7 2 25 518 905
14(30/50) 36x2.5 0.8 2.3 29.8 864 1791
20(16/32) 50x0.50 0.6 1.7 21.5 240 658
18(24/32) 50x0.75 0.6 1.8 23.2 360 896
17(32/32) 50x1 0.6 1.9 24.5 480 1052
16(30/30) 50x1.5 0.7 2 28.9 720 1381
14(30/50) 50x2.5 0.8 2.3 35 600 1175
20(16/32) 61x0.50 0.6 1.8 23.1 293 780
18(24/32) 61x0.75 0.6 2 25.8 439 1030
17(32/32) 61x1 0.6 2.1 26 586 1265
16(30/30) 61x1.5 0.7 2.4 30.8 878 1640
14(30/50) 61x2.5 0.8 2.4 37.1 1464 2724
