 Industrial Cables
H05VV-F/H05VVH2-F
Application and Description
These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators,
washing machines, spin dryers and other appliances, as long as it meets applicable equipment
specifications. These cables are also suited for cooking and heating apparatus, provided that the cable
does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further
applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in
the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except
clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U
318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.
Standard and Approval
<HAR>CEI 20-20/5 / 20-35 (EN60332-1) /20-52,
0.5 - 2.5mm² to BS6500, 4.0mm² to BS7919, 6.0mm² generally to BS7919,
VDE0281, CENELEC HD21.5, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

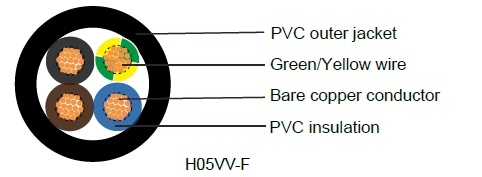

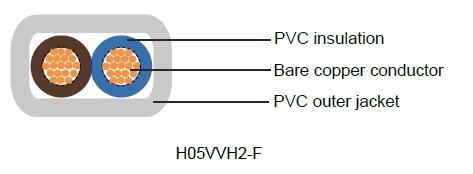

Cable Construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T12 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket TM2

Technical Characteristics
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -40º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
|
H05VV-F |
|
2 x 0.75 |
0.6 |
0.8 |
6.4 |
14.4 |
57 |
18(24/32) |
3 x 0.75 |
0.6 |
|
6.8 |
21.6 |
68 |
18(24/32) |
4 x 0.75 |
0.6 |
0.8 |
7.4 |
29 |
84 |
18(24/32) |
5 x 0.75 |
0.6 |
0.9 |
8.5 |
36 |
106 |
|
2 x 1.00 |
0.6 |
0.8 |
6.8 |
19 |
65 |
17(32/32) |
3 x 1.00 |
0.6 |
0.8 |
7.2 |
29 |
79 |
17(32/32) |
4 x 1.00 |
0.6 |
0.9 |
8.0 |
38 |
101 |
17(32/32) |
5 x 1.00 |
0.6 |
0.9 |
8.8 |
48 |
123 |
16(30/30) |
2 x 1.50 |
0.7 |
0.8 |
7.6 |
29 |
87 |
16(30/30) |
3 x 1.50 |
0.7 |
0.9 |
8.2 |
43 |
111 |
16(30/30) |
4 x 1.50 |
0.7 |
1.0 |
9.2 |
58 |
142 |
16(30/30) |
5 x 1.50 |
0.7 |
1.1 |
10.5 |
72 |
176 |
14(30/50) |
2 x 2.50 |
0.8 |
|
9.2 |
48 |
134 |
14(30/50) |
3 x 2.50 |
0.8 |
1.1 |
10.1 |
72 |
169 |
14(30/50) |
4 x 2.50 |
0.8 |
1.1 |
11.2 |
96 |
211 |
14(30/50) |
5 x 2.50 |
0.8 |
1.2 |
12.4 |
120 |
262 |
12(56/28) |
3 x 4.00 |
0.8 |
1.2 |
11.3 |
115 |
233 |
12(56/28) |
4 x 4.00 |
0.8 |
1.2 |
12.5 |
154 |
292 |
12(56/28) |
5 x 4.00 |
0.8 |
1.4 |
13.7 |
192 |
369 |
|
3 x 6.00 |
0.8 |
1.1 |
13.1 |
181 |
328 |
10(84/28) |
4 x 6.00 |
0.8 |
1.3 |
13.9 |
230 |
490 |
H05VVH2-F |
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
4.2 x 6.8 |
14.4 |
48 |
17(32/32) |
2 x 1.00 |
0.6 |
0.8 |
4.4 x 7.2 |
19.2 |
57 |
|
