H05V-U/H07V-U

Application and Description

H05 V-U/(H)05 V-U

H05V-U/H07V-U cables are determined for the installation to the inside of apparatus as well as for the
protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes,
under and surface mounting of plasters.

H07 V-U/(H)07 V-U
H05V-U/H07V-U cables are suitable for laying tubes, under and surface mounting of plasters and also in
closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or
tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for
protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct
current against ground..

Standard and Approval

HD 21.3 S3, VDE-0281 Part-3, CEI20-20/3,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

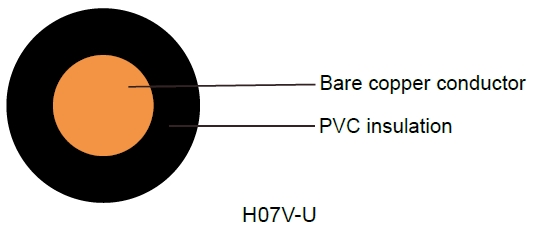

Cable Construction

Solid bare copper single wire
Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
H05V-U (20, 18 & 17 AWG)
H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage: 300/500v (H05V-U)
Working voltage: 450/750v (H07V-U)
Test voltage: 2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km

H05V-U/H07V-U Industrial Cables

Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation mm
Nominal Overall Diameter
mm
Nominal Copper Weight kg/Km
Nominal Weight kg/Km
20
1 x 0.5
0.6
2.1
4.8
9
18
1 x 0.75
0.6
2.2
7.2
11
17
1 x 1
0.6
2.4
9.6
14
16
1 x 1.5
0.7
2.9
14.4
21
14
1 x 2.5
0.8
3.5
24.0
33
12
1 x 4
0.8
3.9
38.0
49
10
1 x 6
0.8
4.5
58.0
69
8
1 x 10
1.0
5.7
96.0
115
