H03V2V2-F/H03V2V2H2-F

Application and Description

H03V2V2-F/H03V2V2H2-F cables are suitable for domestic premises, kitchen, office for light service or light

portable apparatuses. With their special insulation and sheath compounds H03V2V2-F/H03V2V2H2-F cables are

adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system

apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and

agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use:

90°C.While high temperature use, skin contact must be avoided.

Standard and Approval

HD 21.12; HD 308 S2 DIN VDE 0281 part 1, part 12; DIN VDE 0293 part 308; DIN VDE 0295

CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

Cable Construction

Bare copper fine wire conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

PVC core insulation T13 to VDE-0281 Part 1

Color coded to VDE-0293-308

PVC outer jacket TM3

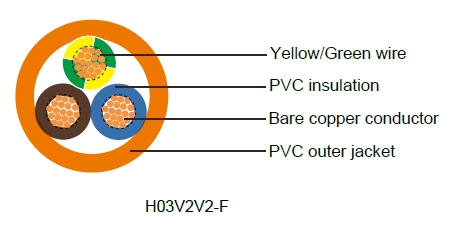

H03V2V2-F/H03V2V2H2-F            H03V2V2-F/H03V2V2H2-F

Technical Characteristics

Working voltage: 300/300 volts

Test voltage: 3000 volts

Flexing bending radius: 15 x Ø

Static bending radius: 4 x Ø

Flexing temperature: +5º C to +90º C

Static temperature: -40º C to +90º C

Short circuit temperature: +160º C

Flame retardant: IEC 60332.1

Insulation resistance: 20 MΩ x km

Industrial Cables         Industrial Cables

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
H03V2V2-F
20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
H03V2V2H2-F
20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
