 Italian Standard Control Cable
FG7R
Fire retardant, LSF power, control and signalling cables,insulated in type G7 elastomeric compound and pvc sheathed with
flexible conductors for fixed installation.
Normative references:
| |
Italian standard: |
CEI 20-13 |
UNEL 35375 |
|
|
|
| |
|
UNEL 35377 (FG7OR over 7 cond.) |
|
| |
Colours code: |
CEI UNEL 00722/ HD 308 |
|
|
|

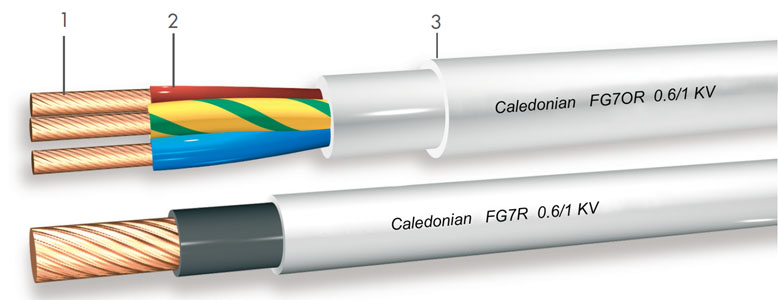

Construction:
 - 1 - Flexible copper class 5 CEI EN 60228
- 2 - HEPR elastomeric compound type G7
- 3 - PVC Rz
Characteristics:
- Rated voltage: 0.6/1 KV
- Operating Temperature: -25°C - +90° C on the conductor
- Max. temperature of short circuit: 250° C on the conductor (max. duration 5 seconds)
-
| Min. bending radius: |
UNEL 35375: 4 x outer diameter |
| |
UNEL 35377: 6 x outer diameter |
Applications:
| Section |
Max diam.
conductor |
Insulation
thickness |
sheath thickness |
Outer diameter |
Max cond. resist.
at 20°C |
Cable weight |
| mm2 |
mm |
mm |
mm |
mm |
ohms/km |
kg/km |
| FG7R |
| 1x1.5 |
0.26 |
0.7 |
1.4 |
6.0 |
13.3 |
55 |
| 1x2.5 |
0.26 |
0.7 |
1.4 |
6.4 |
7.98 |
65 |
| 1x4 |
0.31 |
0.7 |
1.4 |
6.9 |
4.95 |
85 |
| 1x6 |
0.31 |
0.7 |
1.4 |
7.5 |
3.30 |
105 |
| 1x10 |
0.41 |
0.7 |
1.4 |
8.4 |
1.91 |
155 |
| 1x16 |
0.41 |
0.7 |
1.4 |
9.6 |
1.21 |
210 |
| 1x25 |
0.41 |
0.9 |
1.4 |
11.2 |
0.78 |
310 |
| 1x35 |
0.41 |
0.9 |
1.4 |
12.2 |
0.554 |
410 |
| 1x50 |
0.41 |
1 |
1.4 |
13.9 |
0.386 |
560 |
| 1x70 |
0.51 |
1.1 |
1.4 |
16.0 |
0.272 |
770 |
| 1x95 |
0.51 |
1.1 |
1.5 |
17.7 |
0.206 |
990 |
| 1x120 |
0.51 |
1.2 |
1.5 |
19.7 |
0.161 |
1250 |
| 1x150 |
0.51 |
1.4 |
1.6 |
21.8 |
0.129 |
1550 |
| 1x185 |
0.51 |
1.6 |
1.6 |
23.9 |
0.106 |
1900 |
| 1x240 |
0.51 |
1.7 |
1.7 |
26.4 |
0.0801 |
2450 |
| 1x300 |
0.51 |
1.8 |
1.8 |
28.9 |
0.0641 |
3000 |
| 1x400 |
0.51 |
1.9 |
1.9 |
35.0 |
0.0486 |
4000 |
| 1x500 |
0.51 |
2.2 |
2.1 |
39.5 |
0.0384 |
5000 |
| 1x630 |
0.51 |
2.4 |
2.2 |
44.0 |
0.0287 |
6600 |
| FG7OR |
| 2x1.5 |
0.26 |
0.7 |
1.8 |
10.1 |
13.30 |
155 |
| 2x2.5 |
0.26 |
0.7 |
1.8 |
10.9 |
7.98 |
190 |
| 2x4 |
0.31 |
0.7 |
1.8 |
11.9 |
4.95 |
240 |
| 2x6 |
0.31 |
0.7 |
1.8 |
13.1 |
3.30 |
310 |
| 2x10 |
0.41 |
0.7 |
1.8 |
15.3 |
1.91 |
460 |
| 2x16 |
0.41 |
0.7 |
1.8 |
17.3 |
1.21 |
620 |
| 2x25 |
0.41 |
0.9 |
1.8 |
20.5 |
0.780 |
900 |
| 2x35 |
0.41 |
0.9 |
1.8 |
22.9 |
0.554 |
1200 |
| 2x50 |
0.41 |
1 |
1.8 |
26.1 |
0.386 |
1650 |
| 3x1.5 |
0.26 |
0.7 |
1.8 |
10.6 |
13.3 |
175 |
| 3x2.5 |
0.26 |
0.7 |
1.8 |
11.4 |
7.98 |
220 |
| 3x4 |
0.31 |
0.7 |
1.8 |
12.5 |
4.95 |
280 |
| 3x6 |
0.31 |
0.7 |
1.8 |
13.8 |
3.30 |
365 |
| 3x10 |
0.41 |
0.7 |
1.8 |
16.2 |
1.91 |
550 |
| 3x16 |
0.41 |
0.7 |
1.8 |
18.3 |
1.21 |
760 |
| 3x25 |
0.41 |
0.9 |
1.8 |
21.8 |
0.780 |
1100 |
| 3x35 |
0.41 |
0.9 |
1.8 |
24.3 |
0.554 |
1500 |
| 3x50 |
0.41 |
1 |
1.8 |
27.8 |
0.386 |
2050 |
|
