Multipair Individually Screened Cables

Multipair Individually Screened Cables-Belden Equivalent 9777

Application

Belden Equivalent 9777 cables have individually screened pairs laid up. Each individually screened pair has a

20AWG stranded tinned copper drain wire. Belden Equivalent 9777 cables are used as computer cables.

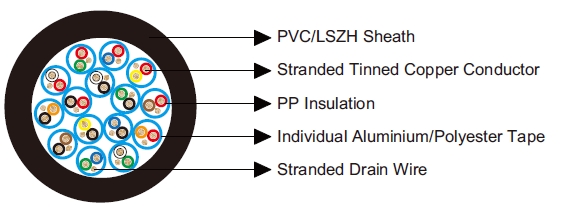

Construction

Multipair Individually Screened Cables-Belden Equivalent 9777

Conductor:

Tinned copper wire.

Insulation:

PP.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red &

White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue.

Electrical & Mechanical Characteristics

AWG   18
Conductor Construction   19x0.254
UL Style   2919
Maximum Conductor Resistance Ω/km 21
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 180
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119777V 15 0.4 1.22 20.8
BE119777H 15 0.4 1.22 20.8
