Belden Equivalent Cables
Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9525
Application
Belden Equivalent 9525 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with
a tinned copper drain wire. Belden Equivalent 9525 cables are suitable for RS232 applications, used as audio,
control and instrumentation cables.

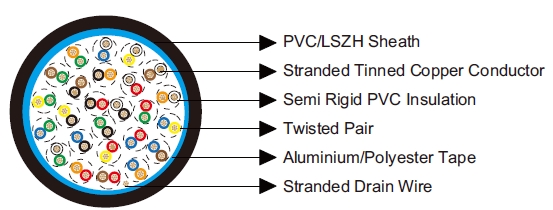

Construction
Conductor:
Tinned copper wire.
Insulation:
Semi Rigid PVC.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White,
Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue, Green/Yellow,
Green/Brown, Green/Orange, White/Blue, White/Yellow, White/Brown, White/ Orange, Blue/Yellow, Blue/Brown,
Blue/Orange.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119525V | 25 | 0.25 | 1.14 | 12.8 |
| BE119525H | 25 | 0.25 | 1.14 | 12.8 |
