Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9309
Application
Belden Equivalent 9309 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with
a tinned copper drain wire.Belden Equivalent 9309 cables are suitable for used as audio, control and
instrumentation cables.

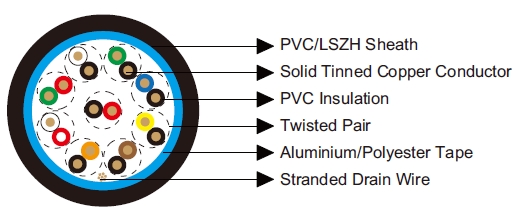

Construction
Conductor:
Tinned copper wire.
Insulation:
PVC.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White,
Red/Green.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | Solid | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 115 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119309V | 9 | 0.33 | 0.84 | 9.22 |
| BE119309H | 9 | 0.33 | 0.84 | 9.22 |
