Multipair Individually Screened Cables

Multipair Individually Screened Cables-Belden Equivalent 8766

Application

Belden Equivalent 8766 cables have individually screened pairs laid up. Each individually screened pair has a

22AWG solid tinned copper drain wire. Belden Equivalent 8766 cables are suitable for used as audio, control and

instrumentation cables.

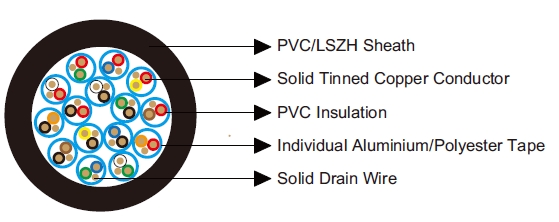

Construction

Multipair Individually Screened Cables-Belden Equivalent 8766

Conductor:

Tinned copper wire.

Insulation:

PVC.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Solid tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red &

White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   Solid
UL Style   2464
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 131
Nominal Capacitance Conductor to Screen pF/m 253
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118766V 15 0.33 1.14 13.3
BE118766H 15 0.33 1.14 13.3
