Germany Standard

Single-core cable

FLRY-A

Application

Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcycles electrical equipment in high temperature condition.

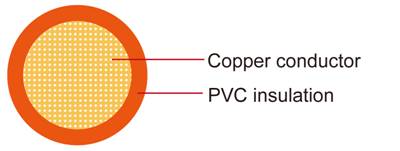

Construction:

FLRY-A

Conductor:

Cu-ETP1 bare or tinned copper according to DIN EN13602

Insulation:

PVC

Standard Compliance:

ISO 6722 Class B

Technical Parameters:

Operating temperature:-40℃ to 105℃



  Conductor Insulation Cable
Nominal
cross-
section
No. and Dia. of Wires Diameter max. Resistance at 20℃
Bare/tinned
max.
mΩ/m
thickness Wall
min.
Overall diameter max. Weight approx.
mm2 No./mm (mm) mΩ/m (mm) (mm) kg/km
1x0.22 7/0.21 0.70 84.80/86.50 0.20 1.20 3
1x0.35 7/0.26 0.80 52.00/54.50 0.20 1.30 5
1x0.50 19/0.19 1.00 37.10/38.20 0.22 1.60 7
1x0.75 19/0.23 1.20 24.70/25.40 0.24 1.90 9
1x1.00 19/0.26 1.35 18.50/19.10 0.24 2.10 11
1x1.50 19/0.32 1.70 12.70/13.00 0.24 2.40 16
1x2.00 19/0.37 2.00 9.42/9.69 0.24 2.60 23
1x2.50 19/0.41 2.20 7.60/7.80 0.28 3.00 26

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
