Windmill Cables
Al Conductor HEPR/PO 0.6/1kV LSOH Power Cable 90℃
Application
Al Conductor HEPR/PO 0.6/1kV LSOH Power Cables 90℃ are designed for main power lines of permanent
routing in wind tower installation.
Standards
IEC 60502

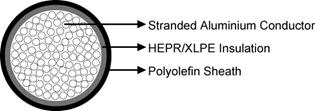

Construction
Conductor:Aluminium conductor, class 2 to IEC 60228.
Insulation: HEPR. XLPE can be offered upon request.
Inner Covering: rubber compound type GM1b.
Sheath:Compound based on polyolefin, type HXM1.
Technical Data
Rated Voltage Uo/U (Um):0.6/1kV
Operating Temperatures:-40℃~+ 90℃
Minimum Bending Radius:4×OD
Short-circuit Temperature:250℃
Flame Retardant:IEC 60332-1
Halogen Free:IEC 60754
Gases Corrosively:DIN EN 50267-2/ IEC 60754
Smoke Density:IEC 61034
Oil Resistant:Yes
Ozone Resistant:Yes
UV Resistant:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. of cores×mm² | mm | kg/km |
| 1×50 | 13.0 | 266 |
| 1×70 | 15.0 | 352 |
| 1×95 | 16.5 | 450 |
| 1×120 | 18.0 | 556 |
| 1×150 | 20.0 | 686 |
| 1×185 | 22.5 | 842 |
| 1×240 | 26.0 | 1076 |
| 1×300 | 29.0 | 1299 |
| 1×400 | 32.5 | 1680 |
| 3×150 | 44.0 | 2756 |
| 4×150 | 49.0 | 3367 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
