400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry,
suitable for installed down well in the oil industry.
Standards
- IEEE Std. 1018
- API RP 11S5
- API RP 11S6

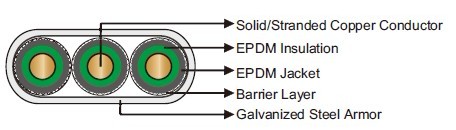

Construction
- Conductor:
Solid/stranded copper conductor.
- Insulation: EPDM insulation.
- Jacket: EPDM rubber. Each insulated conductor should be individually jacketed or three conductors laid
parallel within a common encapsulated jacket.
- Barrier: Barrier tape and braid, used for fluid protection and hoop strength.
- Armor: Galvanized steel.
Dimensions and Weight:
3KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/
kft |
kg/
km |
QYEE-204-3kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.075 |
1.9 |
1.55×0.54 |
39.3×13.8 |
793 |
1180 |
QYEE-204-3kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.075 |
1.9 |
1.64×0.57 |
41.6×14.5 |
901 |
1341 |
QYEE-204-3kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.075 |
1.9 |
1.70×0.59 |
43.3×15.1 |
985 |
1466 |
QYEE-204-3kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.075 |
1.9 |
1.81×0.63 |
46.0×16.0 |
1134 |
1688 |
QYEE-204-3kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.075 |
1.9 |
1.89×0.66 |
47.9×16.6 |
1245 |
1853 |
QYEE-204-3kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.075 |
1.9 |
2.03×0.71 |
51.7×17.9 |
1487 |
2213 |
QYEE-204-3kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.075 |
1.9 |
2.16×0.75 |
54.9×19.0 |
1717 |
2555 |
QYEE-204-3kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.075 |
1.9 |
2.49×0.86 |
63.2×21.8 |
2390 |
3557 |
QYEE-204-3kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.075 |
1.9 |
2.68×0.92 |
68.1×23.4 |
2841 |
4229 |
5KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/
kft |
kg/
km |
QYEE-204-5kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.09 |
2.3 |
1.68×0.59 |
42.6×14.9 |
865 |
1287 |
QYEE-204-5kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.09 |
2.3 |
1.77×0.62 |
44.9×15.6 |
975 |
1451 |
QYEE-204-5kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.09 |
2.3 |
1.83×0.64 |
46.6×16.2 |
1061 |
1579 |
QYEE-204-5kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.09 |
2.3 |
1.94×0.67 |
49.3×17.1 |
1212 |
1804 |
QYEE-204-5kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.09 |
2.3 |
2.02×0.70 |
51.2×17.7 |
1325 |
1971 |
QYEE-204-5kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.09 |
2.3 |
2.17×0.75 |
55.0×19.0 |
1570 |
2336 |
QYEE-204-5kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.09 |
2.3 |
2.29×0.79 |
58.3×20.1 |
1802 |
2682 |
QYEE-204-5kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.09 |
2.3 |
2.62×0.90 |
66.6×22.9 |
2483 |
3696 |
QYEE-204-5kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.09 |
2.3 |
2.81×0.96 |
71.4×24.5 |
2939 |
4374 |
Other conductor size can be offered upon request.
|
