SXCAV & SXCAG Signalling Cables
Application
SXCAV & SXCAG Signalling Cables are designed for connection between switching centers and equipment
shelters along the trackside.
SXCAV & SXCAG Signalling Cables are used as main signalling cables specially designed to give good induction
protection (R.F=0.24 at inductive voltage 170 V/km) and are suitable for installation in intercity railways electrifi
ed at 25KV ac.
Standards
SXCAV SXCAG Specifi cation
Fire performance: EN 50266-2-4 C

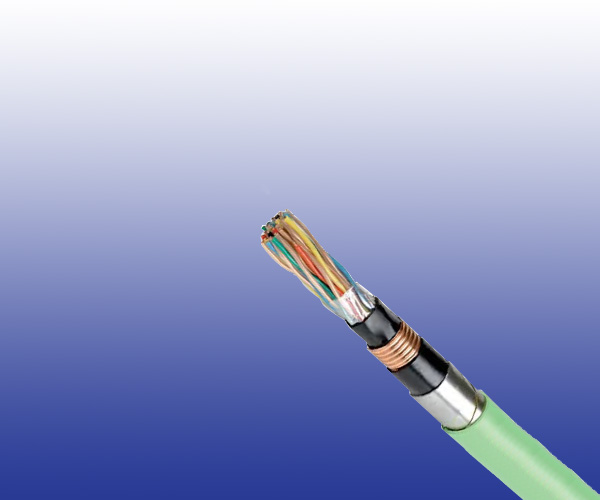

Construction
Conductors: Class 1 solid bare copper conductor.
Insulation: Coloured cross-linked PE insulation.
Cabling Element: Each two conductors are twisted together to form a pair.
Stranding: Pairs are helically stranded in layers to form the cable core.
Core Wrapping: Plastic tape(s) with overlapping.
Inner Sheath: PE sheath.
Electrostatic Shield: One corrugated copper tape.
Intermediate Sheath: PE sheath.
Electromagnetic Shield: Two helically applied steel tapes.
Outer Sheath: Black unleaded PVC (SXCAV) or green halogen free (SXCAG) sheath.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 1.38 |
|---|---|---|
| Nominal Cross Section Area | mm² | 1.5 |
| Maximum Conductor Resistance (DC) | Ω/km | 12.3 |
| Minimum Insulation Resistance @500 V DC (3mins) | MΩ.km | 10000 |
| Maximum Mutual Capacitance @1000Hz (AC) | nF/km | 60 |
| Maximum Reduction Factor @170V/km 50Hz | 0.24 | |
| Operating Voltage | V | 1000 |
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -25℃ to +90℃ (during operation);
-10℃ to +90℃ (during installation)
Dimensions And Weight
SXCAV Cables
| Cable Code | Number of Pairs |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
||
|---|---|---|---|---|---|---|
| Inner | Inter. | Outer | ||||
| 1.38mm Conductor, 2.38mm Insulated Wire | ||||||
| RS/SXCAV-2Y2Y(K)2YBY-1P1.5S | 1 | 1.0 | 0.8 | 1.6 | 16.9 | 513 |
| RS/SXCAV-2Y2Y(K)2YBY-4P1.5S | 4 | 1.0 | 0.8 | 1.6 | 23.1 | 826 |
| RS/SXCAV-2Y2Y(K)2YBY-7P1.5S | 7 | 1.0 | 0.8 | 1.7 | 26.1 | 1060 |
| RS/SXCAV-2Y2Y(K)2YBY-14P1.5S | 14 | 1.2 | 0.8 | 1.8 | 32.3 | 1571 |
| RS/SXCAV-2Y2Y(K)2YBY-24P1.5S | 24 | 1.2 | 1.1 | 2.0 | 38.3 | 2199 |
| RS/SXCAV-2Y2Y(K)2YBY-30P1.5S | 30 | 1.2 | 1.1 | 2.2 | 42.8 | 2555 |
SXCAG Cables
| Cable Code | Number of Pairs |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
||
|---|---|---|---|---|---|---|
| Inner | Inter. | Outer | ||||
| 1.38mm Conductor, 2.38mm Insulated Wire | ||||||
| RS/SXCAG-2Y2Y(K)2YBH-1P1.5S | 1 | 1.0 | 0.8 | 1.6 | 16.9 | 515 |
| RS/SXCAG-2Y2Y(K)2YBH-4P1.5S | 4 | 1.0 | 0.8 | 1.6 | 23.1 | 855 |
| RS/SXCAG-2Y2Y(K)2YBH-7P1.5S | 7 | 1.0 | 0.8 | 1.7 | 26.1 | 1095 |
| RS/SXCAG-2Y2Y(K)2YBH-14P1.5S | 14 | 1.2 | 0.8 | 1.8 | 32.3 | 1616 |
| RS/SXCAG-2Y2Y(K)2YBH-24P1.5S | 24 | 1.2 | 1.1 | 2.0 | 38.3 | 2260 |
| RS/SXCAG-2Y2Y(K)2YBH-30P1.5S | 30 | 1.2 | 1.1 | 2.2 | 42.8 | 2625 |
