Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards
● RENFE E.T. 03.365.051.6

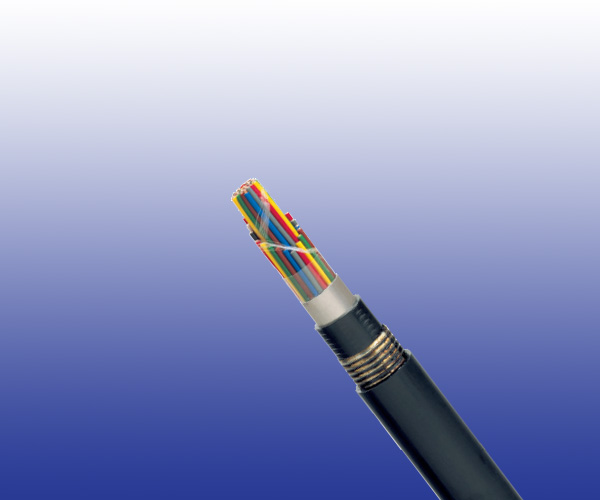

Construction
Conductors
Soft annealed solid copper, 0.9/1.3/1.4 mm nominal diameter.
Insulation
PE insulation.
Cabling Element
Four insulated conductors are twisted together to form a quad.
Stranding
Star quads are helically stranded in concentric layers.
Core Wrapping
Plastic tape(s) with overlapping.
Moisture Barrier
One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied with longitudinally overlap.
Inner Sheath
PE sheath.
Armour
One corrugated steel tape is longitudinally applied with overlap.
Outer Sheath
PE sheath.
Optional
Jelly Filled Cables: The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration
within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.9 |
1.3 |
1.4 |
| Maximum Conductor Resistance |
Ω/km |
28.5 |
13.7 |
11.7 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
25000 |
25000 |
25000 |
| Resistance Unbalance |
% |
1 |
1 |
1 |
| Mutual Capacitance @800Hz |
nF/km |
41 |
45 |
45 |
| Capacitance Unbalance @800Hz |
|
|
|
|
| K1 mean value/individual value |
pF/460m |
35/250 |
35/250 |
35/250 |
| K9-12 mean value/individual value |
pF/460m |
35/250 |
35/250 |
35/250 |
| ea1/2 mean value/individual value |
pF/460m |
320/1200 |
320/1200 |
320/1200 |
| Attenuation @1KHz |
dB/km |
0.7 |
0.5 |
0.46 |
| Test Voltage @50Hz 1min |
|
|
|
|
| Core to Core |
Veff |
2100 |
2100 |
2100 |
| Core to Screen |
Veff |
2500 |
2500 |
2500 |
| Core to Armouring |
Veff |
2000 |
2000 |
2000 |
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -30℃ to +70℃ (during operation); -10℃ to +50℃ (during installation)
Dimensions And Weight
EAPSP n×4×0.9/1.3/1.4 Cables
Cable Code |
Number of
Quads
(n) |
Nominal Sheath Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
Inner |
Outer |
0.9mm Conductor, 1.8mm Insulated Wire |
RS/EAPSP-2Y(L)2YB2Y-1Q0.9 |
1 |
1.3 |
1.4 |
15.5 |
240 |
RS/EAPSP-2Y(L)2YB2Y-3Q0.9 |
3 |
1.3 |
1.4 |
19.5 |
380 |
RS/EAPSP-2Y(L)2YB2Y-5Q0.9 |
5 |
1.3 |
1.4 |
22.0 |
490 |
RS/EAPSP-2Y(L)2YB2Y-7Q0.9 |
7 |
1.3 |
1.4 |
24.0 |
580 |
RS/EAPSP-2Y(L)2YB2Y-10Q0.9 |
10 |
1.3 |
1.4 |
27.5 |
750 |
RS/EAPSP-2Y(L)2YB2Y-14Q0.9 |
14 |
1.4 |
1.6 |
30.0 |
920 |
1.3mm Conductor, 2.5mm Insulated Wire |
RS/EAPSP-2Y(L)2YB2Y-1Q1.3 |
1 |
1.3 |
1.4 |
16.0 |
270 |
RS/EAPSP-2Y(L)2YB2Y-3Q1.3 |
3 |
1.3 |
1.4 |
20.5 |
470 |
RS/EAPSP-2Y(L)2YB2Y-5Q1.3 |
5 |
1.4 |
1.6 |
26.5 |
680 |
RS/EAPSP-2Y(L)2YB2Y-7Q1.3 |
7 |
1.4 |
1.6 |
27.0 |
840 |
RS/EAPSP-2Y(L)2YB2Y-10Q1.3 |
10 |
1.4 |
1.6 |
30.5 |
1100 |
RS/EAPSP-2Y(L)2YB2Y-14Q1.3 |
14 |
1.5 |
1.6 |
34.0 |
1400 |
1.4mm Conductor, 2.6mm Insulated Wire |
RS/EAPSP-2Y(L)2YB2Y-1Q1.4 |
1 |
1.3 |
1.4 |
18.0 |
330 |
RS/EAPSP-2Y(L)2YB2Y-3Q1.4 |
3 |
1.3 |
1.4 |
23.0 |
560 |
RS/EAPSP-2Y(L)2YB2Y-5Q1.4 |
5 |
1.4 |
1.6 |
26.5 |
770 |
RS/EAPSP-2Y(L)2YB2Y-7Q17 |
7 |
1.4 |
1.6 |
29.0 |
950 |
RS/EAPSP-2Y(L)2YB2Y-10Q1.4 |
10 |
1.4 |
1.6 |
34.0 |
1280 |
RS/EAPSP-2Y(L)2YB2Y-14Q1.4 |
14 |
1.5 |
1.6 |
38.0 |
1650 |
RS/EAPSP-2Y(L)2YB2Y-19Q1.4 |
19 |
1.6 |
1.8 |
43.0 |
2120 |
EAPSP-R n×4×0.9/1.3 Jelly Filled Cables
Cable Code |
Number of
Quads
(n) |
Nominal Sheath Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
Inner |
Outer |
0.9mm Conductor, 1.8mm Insulated Wire |
RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q0.9 |
1 |
1.3 |
1.4 |
16.5 |
270 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q0.9 |
3 |
1.3 |
1.4 |
22.0 |
470 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q0.9 |
5 |
1.3 |
1.4 |
25.0 |
630 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q0.9 |
7 |
1.3 |
1.4 |
26.7 |
730 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q0.9 |
10 |
1.3 |
1.4 |
31.5 |
980 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q0.9 |
12 |
1.4 |
1.6 |
32.8 |
1090 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q0.9 |
14 |
1.4 |
1.6 |
34.6 |
1230 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q0.9 |
19 |
1.5 |
1.6 |
39.0 |
1560 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q0.9 |
25 |
1.5 |
1.6 |
43.2 |
1940 |
1.3mm Conductor, 2.5mm Insulated Wire |
RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q1.3 |
1 |
1.3 |
1.4 |
18.0 |
360 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q1.3 |
3 |
1.3 |
1.4 |
23.0 |
570 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q1.3 |
5 |
1.4 |
1.6 |
29.5 |
830 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q1.3 |
7 |
1.4 |
1.6 |
29.7 |
980 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q1.3 |
10 |
1.4 |
1.6 |
34.5 |
1330 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q1.3 |
12 |
1.5 |
1.8 |
38.0 |
1580 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q1.3 |
14 |
1.5 |
1.8 |
38.6 |
1710 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q1.3 |
19 |
1.6 |
2.0 |
45.5 |
2260 |
RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q1.3 |
25 |
1.6 |
2.0 |
50.5 |
2840 |
