CCTSST-FR0.3 n×4×1.4
Application
CCTSST-FR0.3 n×4×1.4 cables are used as railway cables and can be installed directly into the ground or in
ducts.
Reference Standards
RENFE E.T. 03.365.051.6

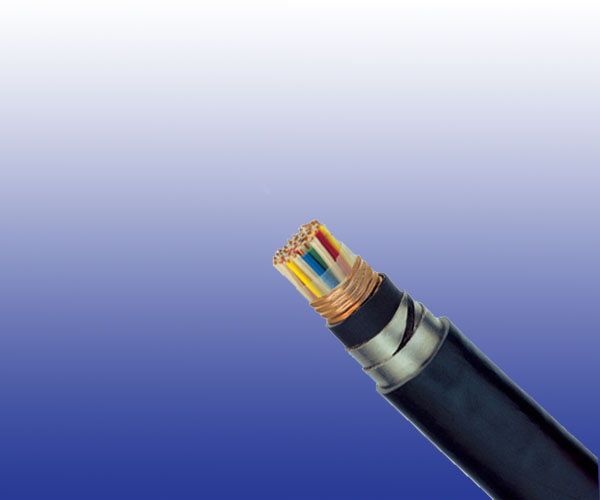

Construction
Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
Insulation: PE insulation.
Cabling Element: Four insulated conductors are twisted together to form a quad.
Stranding: Quads are helically stranded in concentric layers.
Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
Screen: Copper tapes with overlap (protection against interference).
Inner Sheath: LSZH sheath, coloured green.
Armour: Two layers steel tape (0.8mm thick).
Outer Sheath: LSZH sheath, coloured green.
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm | 1.4 |
|---|---|---|
| Maximum Conductor Resistance | Ω/km | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 35000 |
| Mutual Capacitance @800Hz | nF/km | 45 |
| Capacitance Unbalance @800Hz | ||
| K1 maximum individual value | pF/460m | 250 |
| K9-12 maximum individual value | pF/460m | 250 |
| ea1/2 maximum individual value | pF/460m | 1200 |
| Test Voltage @50Hz 1min | ||
| Core to Core | Veff | 2100 |
| Core to Screen | Veff | 2500 |
| Reduction Factor @100V/km 50Hz | 0.3 |
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation);
-10℃ to +60℃ (during installation)
Dimensions And Weight
| Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.6mm Insulated Wire | |||||
| RS/CCTSST-FR0.3-2Y(K)HBH-1Q1.4 | 1 | 1.5 | 1.6 | 19.0 | 880 |
| RS/CCTSST-FR0.3-2Y(K)HBH-3Q1.4 | 3 | 1.5 | 1.6 | 27.1 | 1440 |
| RS/CCTSST-FR0.3-2Y(K)HBH-5Q1.4 | 5 | 1.5 | 1.6 | 31.0 | 1826 |
| RS/CCTSST-FR0.3-2Y(K)HBH-7Q1.4 | 7 | 1.5 | 1.6 | 33.1 | 2090 |
| RS/CCTSST-FR0.3-2Y(K)HBH-10Q1.4 | 10 | 1.7 | 1.8 | 38.4 | 2640 |
| RS/CCTSST-FR0.3-2Y(K)HBH-14Q1.4 | 14 | 1.7 | 1.8 | 42.2 | 3168 |
| RS/CCTSST-FR0.3-2Y(K)HBH-19Q1.4 | 19 | 1.8 | 2.0 | 47.2 | 3861 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
