2PfG 1169 Photovoltaic Cables |
 |
|
|
|
|
|
|
|
 PHOTOFLEX Photovoltaic Cable

Application
These cables are designed for connecting photovoltaic system
components inside and outside of buildings and equipment with high
mechanical requirements and extreme weather conditions.
Standard and Approval
2PfG 1169/08.2007 (PV1-F)

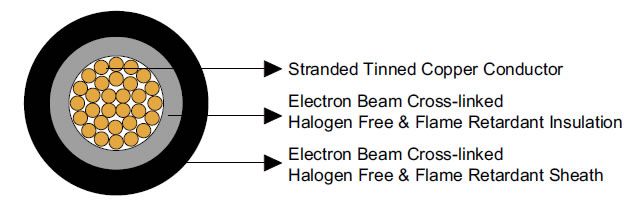

Cable construction
Conductor: Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5.
Insulation: Electron beam cross-linked, halogen free and flame retardant compound.
Sheath: Electron beam cross-linked, halogen free and flame retardant compound, Black
Electrical Properties
» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
» Insulation Resistance: 1000 MΩ-km
» Spark Test: 6000 Vac (8400 Vdc)
» Voltage Withstand: 6500 Vac for 5 min
Thermal Properties
» Maximum Voltage: Ambient Temperature: -40℃ ~ +90℃
» Maximum Temperature At Conductor: 120℃ (20000h) according to IEC/EN 60216-1
» Short Circuit Temperature: 200℃/5 sec
» Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
» High Temperature Pressure Test: According to EN 60811-3-1
» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity
Mechanical Properties
» Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)
» Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F
» Notch Propagation: According to 2 PfG 1169/08.2007 Annex G
» Tensile Strength And Elongation Of Insulation And Jacket: According to EN 60811
» Anticipated Period Of Use: 25 years
Chemical Properties
» Ozone Resistance: According to EN 50396 part 8.1.3 Method B
» Weathering- UV Resistance: According to HD 605/A1
» Ammoniac resistant
» Very good resistance to oils and chemicals
» High wear and robust, abrasion resistant
» Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
EC directives
» The cables are conform to the EC directives CE 2006/95/EC (Low voltage directive) and RoHS 2002/95/EC
(Restriction of Hazardous Substances)
Fire Performance
» Flame retardant according to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2
» Low smoke emission according to IEC 61034, EN 50268
» Halogen free according to EN 50267-2-1, IEC 60754-1
» Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2
Dimensions and Weight
No. of Cores
×Nominal Cross
Section |
No. of
Stranding
|
Nominal Conductor Diameter |
Nominal Insulation Thickness |
Nominal Sheath
Thickness
|
Nominal Overall
Diamater
|
Nominal
Weight
|
| No. ×mm²
|
- |
mm |
mm |
mm |
mm |
kg/km
|
1×1.5 |
30/0.25
|
1.58 |
1.14 |
0.82 |
5.4 |
52 |
1×2.5 |
50/0.25
|
2.04 |
1.14 |
0.82 |
5.8 |
67 |
1×4.0 |
56/0.30
|
2.59 |
1.14 |
0.82 |
6.4 |
87 |
1×6.0 |
84/0.30
|
3.17 |
1.14 |
0.82 |
7.0 |
113 |
1×10 |
78/0.40
|
4.07 |
1.52 |
0.82 |
8.6 |
178 |
1×16 |
128/0.40
|
5.22 |
1.52 |
0.82 |
9.8 |
254 |
1×25 |
199/0.40
|
6.51 |
1.52 |
0.82 |
11.1 |
363 |
1×35 |
279/0.40
|
7.71 |
1.52 |
0.82 |
12.3 |
473 |
Current Carrying Capacity
Cross Section |
AWG |
Maximum Conductor
Resistance @ 20℃ |
Current Carrying Capacity |
Single cable free in air |
Single cable on surfaces |
To cables adjacent on surfaces |
mm² |
- |
Ω |
A |
A |
A |
1.5 |
16 |
13.7 |
30 |
29 |
24 |
2.5 |
14 |
8.21 |
41 |
39 |
33 |
4 |
12 |
5.09 |
55 |
52 |
44 |
6 |
10 |
3.39 |
70 |
67 |
57 |
10 |
8 |
1.95 |
98 |
93 |
79 |
16 |
6 |
1.24 |
132 |
125 |
107 |
25 |
4 |
0.795 |
176 |
167 |
142 |
35 |
2 |
0.565 |
218 |
207 |
176 |
Conversion Factor for Deviating Temperatures
Ambient Temperature ℃ |
Conversion Factor |
Up to 60 |
1.00 |
70 |
0.91 |
80 |
0.82 |
90 |
0.71 |
100 |
0.58 |
110 |
0.41 |
|
