Type W Two-Conductor Flat Portable Power Cable 2kV

Applications

Type W Two-Conductor Flat Portable Power Cable s are designed for use on DCmining equipment, such as

D.C. shuttle cars, drills, cutting and loading machines.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

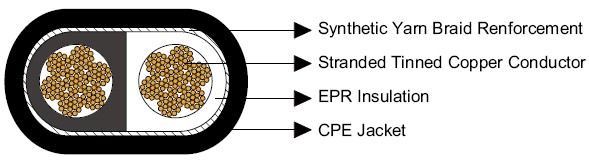

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Reinforcement: Synthetic yarn.

Jacket:Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon

request.

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Nominal Insulation Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores×AWG/kcmil		inch	mm	inch	mm	lbs/kft	kg/km	A
2×8	133	0.06	1.5	0.51×0.84	13.0×21.3	340	506	72
2×6	133	0.06	1.5	0.56×0.93	14.2×23.6	440	655	95
2×4	259	0.06	1.5	0.61×1.05	15.5×26.7	550	818	127
2×3	259	0.06	1.5	0.68×1.14	17.3×29.0	675	1005	145
2×2	259	0.06	1.5	0.73×1.24	18.5×31.5	810	1205	167
2×1	259	0.08	2.0	0.81×1.40	20.6×35.6	1020	1520	191
2×1/0	259	0.08	2.0	0.93×1.51	23.6×38.2	1265	1880	217
2×2/0	329	0.08	2.0	0.99×1.63	25.1×41.4	1515	2255	250
2×3/0	413	0.08	2.0	1.03×1.77	26.2×45.0	1810	2694	286
2×4/0	532	0.08	2.0	1.10×1.89	27.9×48.0	2175	3237	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
